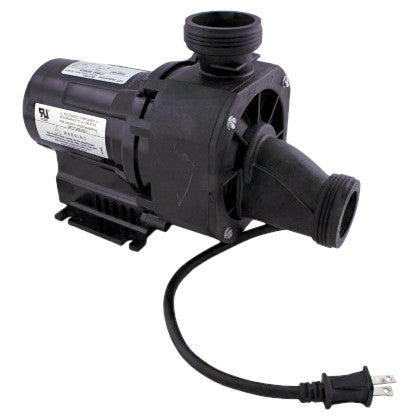

0059F88C Balboa ® ITT Gemini Plus II Bath 1-Speed Pump 1.5Hp 120V 50/60Hz | NR4-C
Couldn't load pickup availability
0059F88C Balboa ® ITT Gemini Plus II Bath 1-Speed Pump 1.5Hp 120V 50/60Hz | NR4-C
Balboa ®/ITT Gemini Plus II is a 1-Speed 1.5HP Bath Pump for high flow bath jet systems.
Features:
- Designed for high flow bath jet systems
- California Title 20 Compliant
- Unions sold separately
- Includes: Cord (12.5A)
Product specifications:
| Horsepower: | 1.5HP |
| Speed: | 1-Speed |
| Voltage: | 120V |
| Amperage: | 12.5A |
| Hertz: | 50/60 Hz |
| Intake Size: | 1.5 " |
| Air Switch: | No |
| Length: | 12-11/16" |
| Width: | 5-11/16" |
| Discharge Height: | 7-3/4" |
| Overall Height: | 7-3/4" |
| Drain Plug Location: | None |
| Suction Style: | Bottom |
| Suction Pipe Size: | 1-1/2 " |
| Suction Connection Type: | Male Buttress Thread (MBT) |
| Discharge Style: | Center |
| Discharge Pipe Size: | 1-1/2 " |
| Discharge Connection Type: | Male Buttress Thread (MBT) |
Replacement for: NR4-C, #0059F00CJ, #0059F88C, #0080E88C, #0013F88C, #0033F88C, #0035F88C, #0059F00C, #0059F88C.
Notes: To convert this pump to variable speed (low to high) you must also purchase a Balboa ® Titan Control system kit 99774, variable speed control. Other wise, it will just operate as a single speed (on/off)
SKU: 0059F88C
MPN: 0059F88C
Model: Gemini Plus II
Manufacturer: Balboa Water Group ®
Warranty: 1 year (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
