17400-0135 Balboa/Sta-Rite ® Impeller, Dura-Jet, 3.0HP
Couldn't load pickup availability
17400-0135 Balboa/Sta-Rite ® Impeller, Dura-Jet, 3.0HP
Balboa/Sta-Rite ® 3.0 Horsepower pump impeller, Dura-Jet DJ.

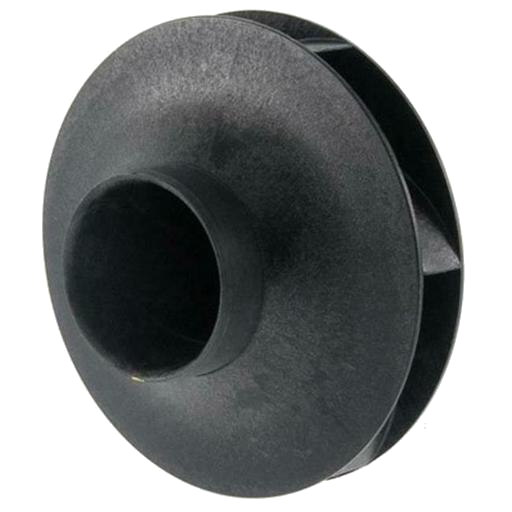

This impeller for Balboa ® Dura-Jet DJ series pumps has a closed face in black or light gray. On the shaft side, there is a slight bevel extending approximately 1/4 inch from the outside edge.
The inlet side features a curved face that smoothly transitions from the outside edge to the inlet. The shaft has a groove measuring 1/16 inch deep by 3/16 inch wide, starting approximately 1/8 inch from the end.
Features:
- Black (older models)
- Light Gray (newer models)
Product Specifications:
- Impeller Type: Closed Face
- Impeller Diameter: 4-1/8" OD
- Vane Width: 1/2" ID
- Eye Diameter: 1-3/4" OD
- Eye Length: 1/2"
- Impeller Width: 5/8" OD
- Shaft Length: 1-3/4"
- Shaft Diameter: 3/4" OD
Note: To ensure a proper match between the impeller and motor on Balboa's Dura-Jet DJ series pumps, it's important to align the impeller number with the amperage on the motor.
| Impeller | Volts/Amps | Volts/Amps |
| 1 hp - 17400-0120 | 115 volt - 11Amps or larger | 230 volt - 6 Amps or larger |
| 1-1/2 hp - 17400-0121 | 115 volt - 16 Amps or larger | 230 volt - 8 Amps or larger |
| 2 hp - 17400-0122 | N/A | 230 volt - 8 Amps or larger |
| 2.5 hp - 17400-0123 | N/A | 230 volt - 10 Amps or larger |
| 3 hp - 17400-0135 | N/A | 230 volt - 12 Amps or larger |
| 4 hp - 17400-0136 | N/A | 230 volt - 12 Amps or larger |
Replaces: 17400-0135, 174000135, 5051-46, 5951-46, 626480.
SKU: 17400-0135
MPN: 17400-0135
Model/Series: Dura-Jet DJ
UPC: 993292278724
Manufacturer: Balboa Water Group/Sta-Rite ®
Warranty by manufacturer
-----------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts!
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
