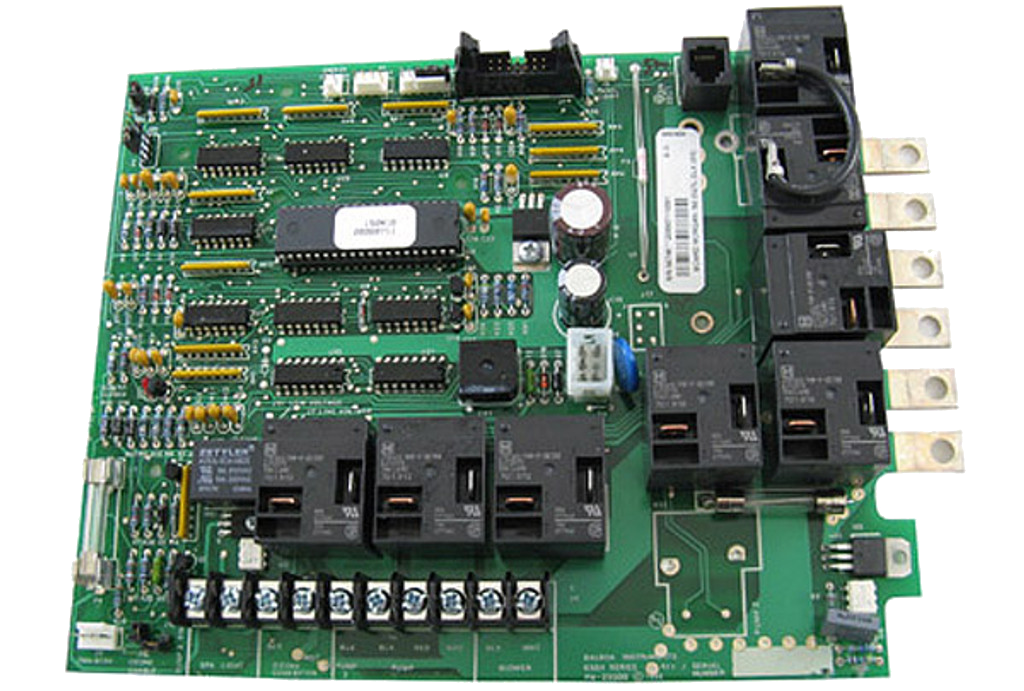

50745 Balboa® Circuit Board, MOR150, Morgan Deluxe Digital Ribbon

50745 Balboa® Circuit Board, MOR150, Morgan Deluxe Digital Ribbon

Balboa® Morgan Spas 150 Digital Deluxe Circuit Board for hot tubes.

**Circuit boards are not "plug and play" - they will require correct component voltage set-up and spa configuration. Please follow the wiring schematics on the back side of the spa pack cover.***

Features:

• Rectangular shape

• Metal coated
• Ribbon Cable

Product Specifications:

• Chip: 150R1(x)
• Size: 7/16" W x 7/8" L
• Diameter Hole: 1/4"
• Connector Type: 14-Pin ribbon cable
• Addition: 6-Pin phone plug (connector transformer, connector is rectangular male) 6-position with only 5-Pins
• Temp Hi-Limit: Male 4-Pin
• Flow/Interlocks: Male 6-Pin (there are x2 - 2-Pin)
• Jumpers: On 4 of pins
• Freeze control: Male 2-Pin
• Fan/Battery: Male 4-Pin
• Fuses on board: F4 3-Amp, Glass Tube Type (INYO #9185-65B)
  Note: There is an additional glass tube fuse soldered to the board

SKU: 50745
MPN: 50745
Model/Series: MOR150
UPC: 689145866308
Manufacturer: Balboa Water Group®
Warranty by manufacturer: 1 year

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

-----------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts!

Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items we cannot take it back other than for manufacturer's warranty

Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
