53834 Balboa ® Circuit Board, EL2000, ML Series, Mach 3 (EL2000M3) | 53834-05
Couldn't load pickup availability
53834 Balboa ® Circuit Board, EL2000, ML Series, Mach 3 (EL2000M3) | 53834-05

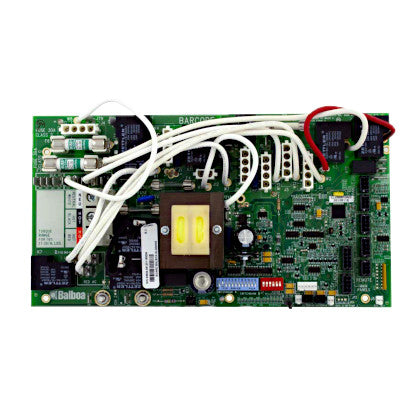

Balboa Water Group ® 53834 Circuit Board model EL2000 Mach 3 (EL2000M3), comes with Chip EL2000M3R2C.
Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.
Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board €“ Spa Parts Experts
Features:
- Chip: EL2000M3R2C
- Supports a 2-speed primary and secondary pump, blower, circulation pump, ozonator/UVC, stereo & light.
Product Specifications:
- Pump 1: 2-Speed
- Pump 2: 1-Speed
- Circulation Pump / Blower
- Ozone
- Light Circuits (12V or 120V)
- Circuit Board - EL2000 Mach 3 (Generic)
- ML Series: P1-P2-BL-CIRC-OZ-LT
Compatible with: Balboa ® ML digital topside panels.
Replacement for: Balboa ® Control System EL2000M3, 53884/Board 55001, System 55000-02 (TS2000R2A&TS2000R2B), 3-60-0176, 59-138-1017, 33-53834-K, 33-0029-K, 55488, 55100, 55488, 55489,10-175-4302, Coleman ® 106-982, 54302-03
Note:
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty
Documents
- 53834 Configuration Guide
SKU: 53834
MPN: 53834
Model: EL2000M3
UPC: 753610462651
Manufacturer: Balboa Water Group ®
Warranty: 1 year (with manufacturer)
-----------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs
As with all electrical items we cannot take it back other than for manufacturer's warranty
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
