54003 Balboa ® Generic Circuit Board, Duplex Digital (NLA)
Couldn't load pickup availability

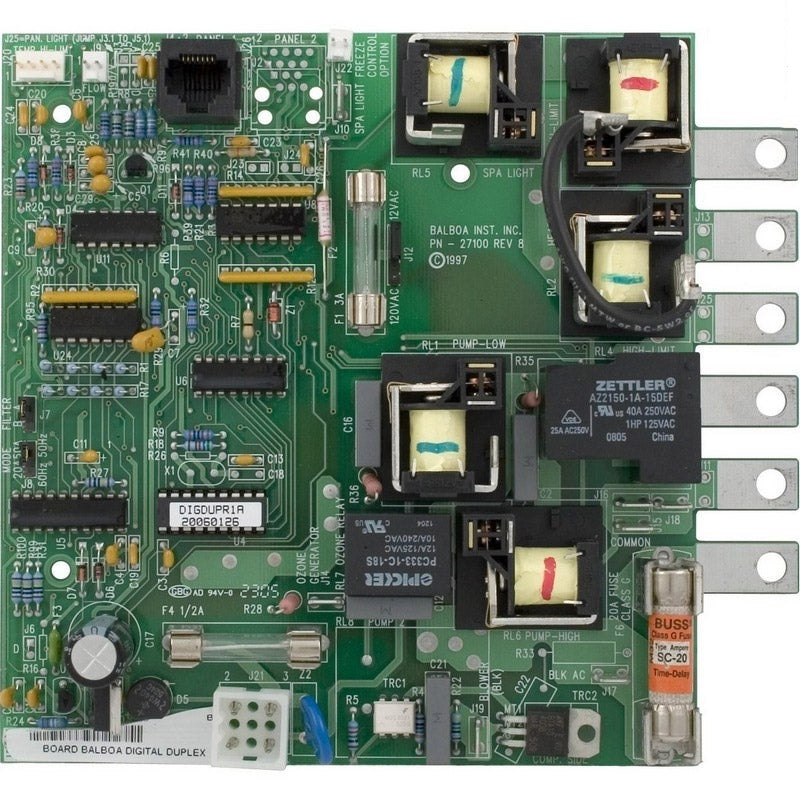

54003 Balboa Circuit Board Duplex Digital - (No longer Available)
Balboa ® Circuit Board Duplex Digital
Features:
- Chip Number: DIGDUPR1(x)
Product Specifications:
- Phone Style Cable
- 120V
This 54003 Balboa Duplex Digital M-1 Circuit Board works with any digital duplex top side.
Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.
Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board €“ Spa Parts Experts
Used in: (note the last digit or letter is the revision number shown in list as "*");
Alpine ALP50R1*, Aquatic 6300DR1*, Balboa DIGDUPR1*, Beachcomber Spas 2500ESR1*
Balboa's ® 54003 Circuit Board Duplex Digital is also used to replace the following parts: 1900DR1*, 1900DR1*, 1900DR1*, 410ER1*, 50833, 51405, 51542, 51569, 51586, 51656, 611311, 9710-09, 09, BAL54003, BH50*, C11JDR1*, C11JDR1*, C2000R1*, DAK50R1*, DS50R1*, DYN100R1*, MAS125R1*, NOR124R1*, P295R1*, RET50R1*, SS23DR1*
VIK100R1*, ZX500DR1*
SKU: 54003
MPN: 54003
Model: Duplex
UPC:753610479741
Manufacturer:Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Notes:
THIS IS A NON RETORNABLE ITEM
As with all electrical items once a balboa circuit board has been installed, we cannot take it back other than for manufacturer's warranty.
All our Balboa Circuit boards are new and carry a full manufacturer's warranty, unless fully noted. Be cautious when purchasing reconditioned boards that you think are new, if a price seems too good it is almost always a reconditioned board.
We have extensive experience with Balboa spa circuit boards and are always available to help.
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
