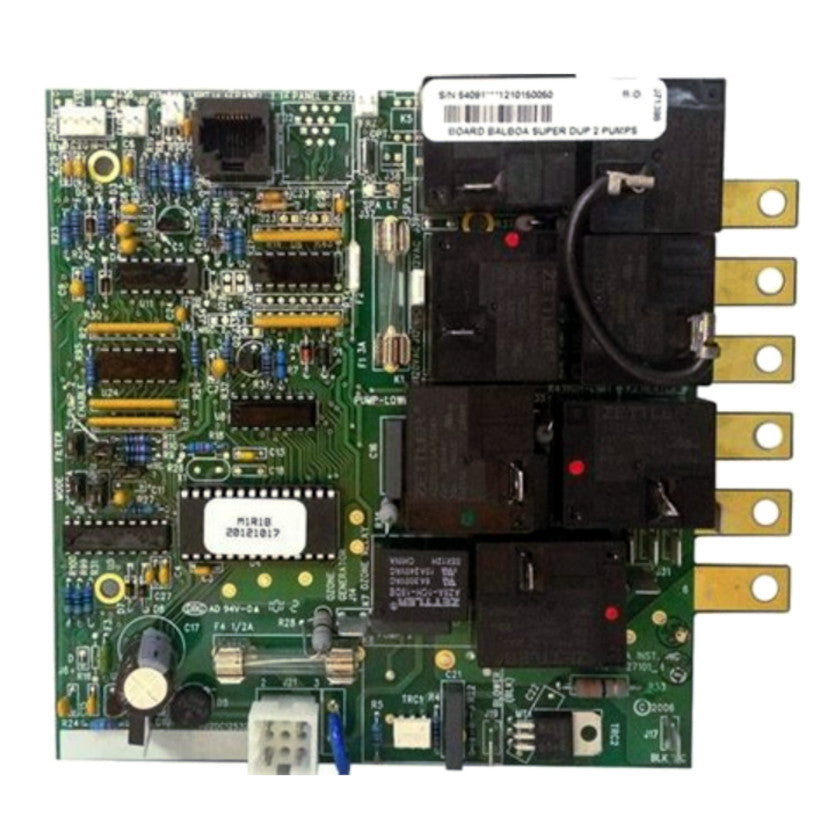

54091 Balboa ® Circuit Board Super Duplex Digital for M1 Systems
Couldn't load pickup availability
54091 Balboa ® Circuit Board Super Duplex Digital for M1 Systems | M1R1B
Balboa ® Circuit Board Super Duplex Digital (generic) for M1 Systems.
Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.
Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board €“ Spa Parts Experts
Features:
- Chip: M1R1B
- Pump 1, Pump 2, Blower, Circ Pump, Ozone, and Light Circuits.
Production Specifications:
- Connection Type: Phone Style connector (RJ45)
- 120V
This circuit board is compatible with the 30337 Balboa ® Sensor Assembly, the 30274-2 Transformer (for 220V applications), the 30274-1 Transformer (for 110V applications) and the 51223, 51225 or 51676 Balboa ® Topside Panels.
Replacement option for: 50973, 51686, 51692, 51786, 52299, 54091, 611154, 9710-15, B2DGDPR2A, BH50D, BSEV50, BSUN50D, CAT100R1A, CAT100R1B, CS5000R, GRDELTR1A, H50DR1A, H50DR2A, HPL1000R1C, HS50R1B, HS50RIC, LB102R1A, LB102R1C, M1R1B, MAS200R1B, MAS225R1A, MAS225R1B, MIL75R1B, Q2002R1A, WS75R1B.
SKU: 54091
MPN: 54091
Model: M1R1B
UPC: 852673917204
Manufacturer: Balboa Water Group ®
Warranty by manufacturer: 1 Year.
-----------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs
As with all electrical items we cannot take it back other than for manufacturer's warranty
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
