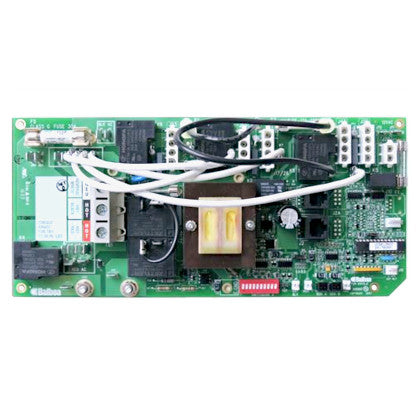

54372-03 Balboa® Circuit Board for VS510SZ Control Systems

54372-03 Balboa® Circuit Board for VS510SZ Control Systems

Balboa® Circuit Board Standard Value  series VL®M7®

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

Features:

• Compatibility with Digital Duplex & Lite Duplex topside control keypads
• Chip: VS510SZ

Product specifications:

• Connector: 8 Pin Phone Cable
• Size: 10.40"x4.90"x12.30"
• Pump 1 dual speed
• Pump 2 single speed
• Blower/Pump 3 single speed
• Ozonator/UVC, & light
• Circ Pump

Used for: VS510SZ/VS510SR Control Systems. Uses (2) Chip numbers VS510SZR1(x)/ VS510SZR2 / VS510SR1(x).

Replaces the following previous (discontinued) revisions: Balboa 54372, 54372-01, 54372-02

Notes:

• It's very important that you don't order a circuit board based on looks, several boards look alike but have different software or chips. It's the chip that drives the board and gives it its unique functions. To correctly identify a circuit board the chip number should be used to identify it. It can be found on a white sticker near the center of the circuit board. Another number that is helpful in identifying a Balboa Water Group® circuit board is the five-digit number found on most boards (5****).
• Pumps can be rated for no more than 12 Amps (each). Uses Expander Board 53544, 330029B-K.
• As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty

 Documents:

• 54372 Hot sheet

SKU: 54372-03
MPN: 54372-03
UPC: 637509110864
Manufacturer: Balboa Water Group®
Warranty: 1 year (with manufacturer)

-----------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.

Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items we cannot take it back other than for manufacturer's warranty

Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
