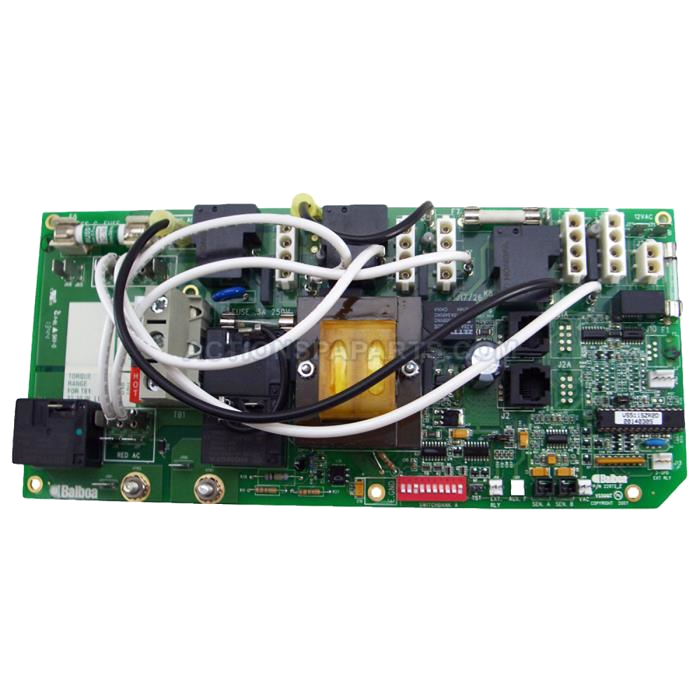

54385-01 Balboa® Circuit Board | VS511SZ
54385-01 Balboa® Circuit Board | VS511SZ
Balboa Water Group® Circuit Board spa Value Series controller with M7 Technology, used in VS-511SZ Control Boxes.
Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.
Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts
Features:
- Chip: VS511SZ
Product Specifications:
- Voltage: 120/240 VAC @ 50/60Hz
- Connection Type: Phone style conector (RJ45)
- Size: 11" x 5"
Alternate part numbers: 54385-02, 54385-03, 54385-04.
Replaces Chip Number: NORVS511R1A, VS511SZRL(x) and VS511SR1(x) - Board Number 54398.
Notes:
- Expansion Board sold separately.
- Remember, do not order a circuit board based on looks, must boards look alike but have different software or chips. The important part is the chip, which drives the board and gives it its unique functions. To correctly identify a circuit board the chip number should be used to identify it. It can be found on a white sticker near the center of the circuit board. Another number that is helpful in identifying a Balboa Water Group® circuit board is the five-digit number found on most boards (5****).
SKU: 54385-01
MPN: 54385-03
Model/Series: VS511SZ
UPC: 637509157456
Manufacturer Balboa Water Group®
Warranty by manufacturer: 1 Year
-----------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts!
Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs
As with all electrical items we cannot take it back other than for manufacturer's warranty
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
