Balboa Water Group

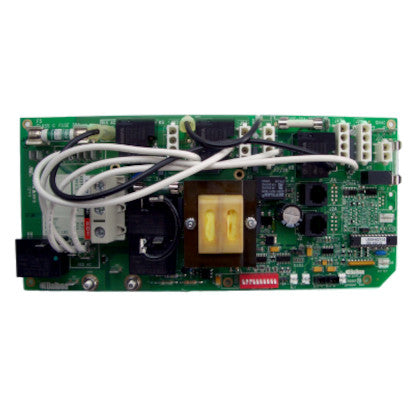

54638 Balboa® Circuit Board, VS504SZ (replaces MVS504SZ)

$365.00
$365.00
Tax included. Shipping calculated at checkout.

54638 Balboa® Circuit Board, VS504SZ (replaces MVS504SZ)

 Balboa® Circuit Board is compatible with the Balboa VL700S and VL701S Topside Panels (with correct Button Layout), VX20 and VX40S Aux Topside Panels.

Features:

  • Chip: VS504SZR1

    Product specifications:

    • Control: Pump 1: 2-Speed, Pump 2: 1-Speed, Ozone, A/V,
    • Cable: Phone Style
    • Size: 7.4" x 13" x 3.25"

    Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

    Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

    Compatible replacement option for: 55372, 55370-01 (Control System*), 33-0612-08CB (Artesian*), 54637-01 (System model VSP-VS504SZ-DCAH), 55636 (CS504SZ System*), 55637 (CS504SZER1X*), 55257,33-54638-K, 55174, 55173-01, Coleman 107-961, 107961, 107-068, 107068 (Control System)

    Alternates: 55637 (Balboa), OP33-0612-08CB (Artesian), 107-961 (Coleman), 3-60-6033

    Replaces: VS514SZR1A and MVS504SZ.

    Note: *Only compatible with the 6-button configuration of this panel.

    Documents:

    SKU: 54638
    MPN: 54638-01
    Model: VS504SZ
    UPC: 605380994309
    Manufacturer: Balboa Water Group
    Warranty: 1 yr. (with manufacturer)

    -----------------------------------------
    Shop this and more spa parts at the best prices online at Spa Parts Experts.

    Note:
    THIS IS A NON RETORNABLE ITEM
    Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
    Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

    As with all electrical items we cannot take it back other than for manufacturer's warranty

    Disclaimer: The product image displayed is for illustrative purposes only.
    The actual product may vary in color, size, shape, or other physical attributes.
    We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
