54775 Balboa ® Control System, EL8000, 4-Pump (No Blower)NLA
Couldn't load pickup availability
54775 Balboa ® Control System, EL8000, 4-Pump (No Blower) - No Longer Available
***Control Systems and circuit boards are not "plug and play" - they will require correct component voltage set-up and spa configuration. Please see the "Technical and Installation" below for more information. Please also follow the wiring schematics on the back side of the spa pack cover.***

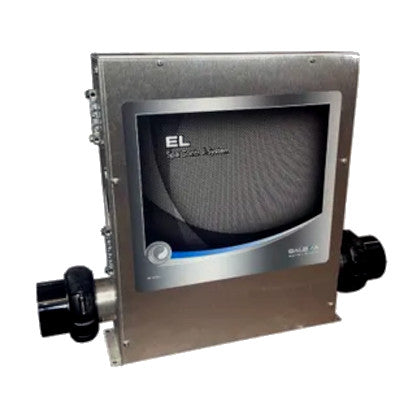

54775 Balboa ® Control System, Model EL84P (or EL8000-4P) with TV Lift Circuit, 5.5KW 220V Heater.
EL84P control system is equipped with M7 technology which allows the heater to be mounted either on the suction or discharge side of the pump.
Balboa ® Elite Series (EL) family of hot tub control systems were designed using Balboa's patented M7 ®
Features:
- Can run the following: 4-Pump, Blower, Ozone, Circ Pump
- UL and ETL listed for your safety
- Freeze protection
- High-limit protection
- Filtration mode
- Economy Mode
- Persistent Memory
- Real Time Clock
Product specifications:
- Operates on: 220V 60Hz 4-Wire (Line 1, Line 2, Neutral and Ground).
- Heater Wattage: 5.5kW
- Heater Style: Straight/Fixed
- Controller Dimensions (approx.): 12.25" L x 15.02" H x 3.56" W
- Heater Dimensions (approx.): 15" L x 2" Diameter
- Pump 1 circuit: 2-Speed, 110/220V, 12A (max.)
- Pump 2 circuit: Single or Dual Speed, 110/220V, 12A (max.)
- Pump 3 circuit: 1-Speed, 110/220V, 12A (max.)
- Pump 4 circuit (on X-P632 Expander Board): 1-Speed, 110/220V, 12A (max.)
- Circ Pump circuit: 110/220V, 4A (max). (24Hr when activated, Requires 25 GPM)
- Ozone circuit: 110/220V, 1A (max.)
- Audio/Video circuit: 110V, 2A (max.) (Constant Circuit)
- "Continuity Momentary" TV Lift circuit: 110V, 4A (max.)
- 12V Light circuit, OR 110V Fiber Optics Light circuit: 2A (max.)
- 5.5KW, 240V Flo-Thru Incoloy ® High Flow heater with M7 technology
- Stainless steel heater housing
- No Pressure Switch. Heater can be installed on suction or discharge side of pump
- Pair of 2" Heater Tailpieces with O-Ring Gaskets
- Spa control system only (does not include power cords or topside)
- Keypad: Not included
Alternate Part Numbers: 3-70-0821
Compatible with the following Balboa ® topside panels: 54589-03 ML900, 54527-02 Panel with 11810 Overlay MLM990S, 55487 Aux Panel with 11823 Overlay AX40.
Note: Topside panel and cords sold separately.
Documents:
- 54775 Configuration guide
- 54775 Tech sheet
SKU: 54775
MPN: 54775
Model: EL84P (or EL8000-4P)
UPC: N/A
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
