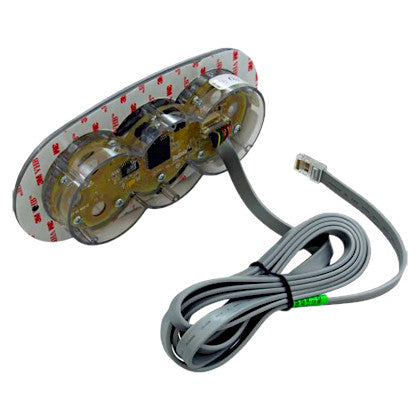

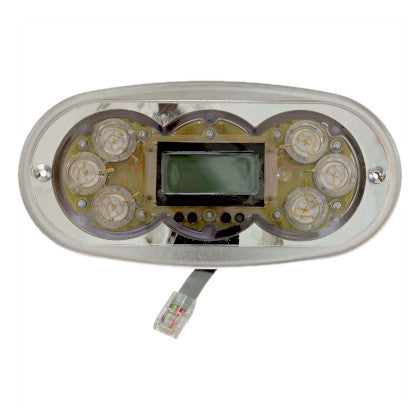

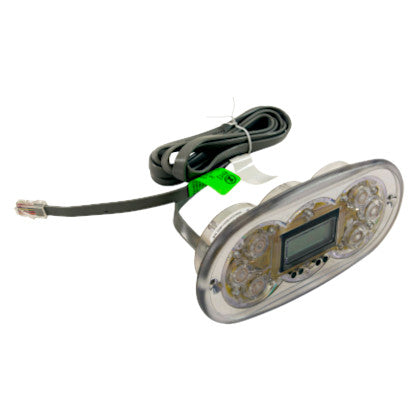

55582 Balboa® Topside 6-Button Control Panel, VL620S, No Overlay | 55582-02

55582 Balboa® Topside 6-Button Control Panel, VL620S, No Overlay | 55582-02

 Balboa Water Group® VL Panel Series, designed for use with VS/GS control systems.

Features:

• 6 Buttons

• LCD Display
• No Overlay

Product specifications:

• Buttons: Jets, Jets 2 (for second pump or blower), Light, Temperature Up, Temperature Down, Mode
• 7-1/8" x 3-1/2" (faceplate with self-adhesive backing)
• Cable Length: 7ft. (flat)
• Connector Type: Phone-style plug (RJ45)

Used on VS503SZ, VS504SZ, VS514SZ & EP0600 control systems.

Associated part numbers #55582-01 + 80-11877, #34-50055-K, #50055, #VL620S.

Used for many spa manufacturers, including Artesian Spas South Seas Series

Works with the following series of circuit boards only: VS503SZ / VS504SZ & VS514SZ.

Documents:

•  55582 Graphics temp
•  55582 Cut out

SKU: 55582
MPN: 55582
Model: VL620S
Manufacturer: Balboa Water Group®
Warranty: 1 year (with manufacturer)

-----------------------------------------
