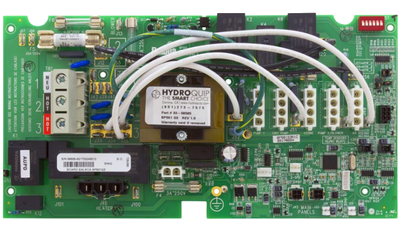

56585 Balboa® Circuit Board, BP501G3 | 56961

56585 Balboa® Board, BP501G3, P1 (2SP), P2 (2SP Via Expansion) | 56961

 Balboa Water Group® Circuit Board for control Panel TP800 (version 3.1 and later), TP600 (version 2.7 and later), TP400T (version 2.7 and later), TP400W (version 2.7 and later).

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

Features:

• Chip Number: BP501G3
• Wifi
• Supports all TP and SpaTouch topsides

Product specifications:

• Power requirements: 240VAC, 50/60Hz*, 48A
• 4 wires [hot, hot, neutral, ground]
• Class A GFCI-protected service (Circuit Breaker = 60A max.)
• Class A GFCI-protected service (Circuit Breaker = 20 /50A max.)
• Setup 8 ONLY, 3 or 4 wires [hot, hot (optional), neutral, ground]
• BP systems automatically detect 50Hz vs 60Hz

Alternate part number:

• 56961 / 56582

Notes:

• Not for circulation pumps
• Works with Balboa’s TP and SpaTouch™ Panels (The only exception is the TP200 & 500 cannot be used with more than 2 pumps)

Documents:

56585  BP501G3

SKU: 56585
MPN: 56585
Model: BP501G3
UPC: N/A
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Trust the experts at Spa Parts Experts for top-quality spa parts at unbeatable prices!

Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items we cannot take it back other than for manufacturer's warranty
