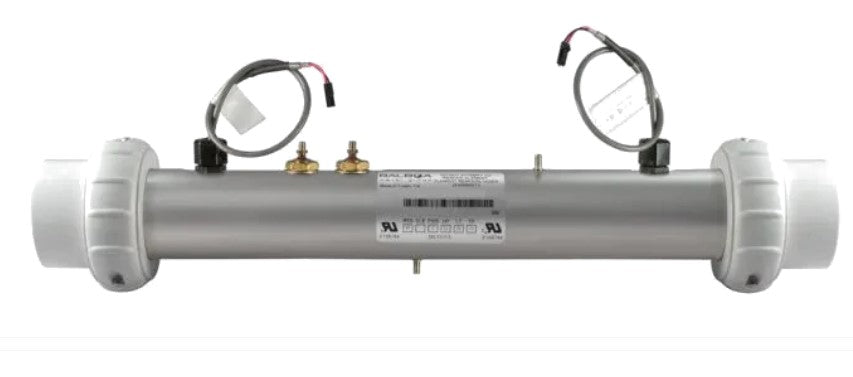

58306 Balboa ® Heater Assembly, 5.5kW, M7 BP Series w/Sensor & Clip (58083)
Couldn't load pickup availability
58306 Balboa ® Heater Assembly, 5.5kW BP Series w/M7 Sensors (58083)
25263 Balboa ®|16" Heater Cable for BP Systems|Spa Parts Experts sold separately
Balboa ® Heater Assembly BP Series. 15", 5.5 kW Flo-Thru Spa Heater with sensorspool and sp
This heater is normally found on the Balboa ® BP Series Control Systems such as: BP501G1, BP501G3 and BP2000G1.
Features:
- Balboa ® OEM M7 Dual Sensors
- Includes 2 Split Nuts, Gaskets, Plastic Tail Pieces and Two Sensors (12" Long)
- With sensors
- Incoloy Heating Element
Product specifications:
- Series: M7 (but not limited to)
- Manifold Length: 15"
- Manifold Diameter: 2"
- Material: Stainless Steel Heater Assembly
- Heater Style: Flow-Thru
- Heater Wattage: 5.5kW Incoloy ® Heating Element
- Mounting Stud Type: Fixed
- Voltage: 120V / 220V
Additional Part Numbers: B58306, BAL58306, 58000, 58002, 58010, 58016, 58086, 58089, 58105, 58121, 58123, 58209, C2550-0807-TPS, 26-58083-K, 26-58083-7S, 26-0807-7S-K, 26-0807-7S-KS, with dual sensors, 58083, 58064, 58086, 58089, 58105, 58121, 58123, 58209
SKU: 58306
MPN: 58306
Model: BP
UPC: N/A
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
