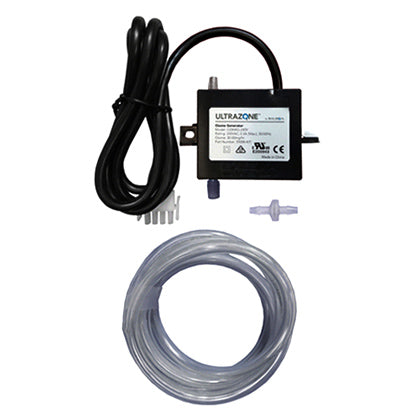

59297 Balboa ® UltraZone Ozone Generator Kit 120/240V
Couldn't load pickup availability
59297 Balboa ® UltraZone Ozone Generator Kit 120/240V
Balboa ® Ozone Generator, Ultrazone
Features :
- Rating: 100-240VAC, 0.06A (Max), 50/60Hz.
- Ozone Output: Air flow @0.8L/min.
- Produces powerful oxidant.
- Operates at a relatively cool temperature.
- Disinfects water by killing viruses and biological contaminants.
- Reduces the use of chemical levels which means reducing the
discomfort of skin and eye irritations. - Low power consumption
- Designed and tested specially for Spa applications
- Available in 120V or 240V, 50/60Hz
- UL/cUL, CE & AS/NZS certified
- Small and compact unit
- Ozone/UV
- Complete Ozonator
- LED indicator light
Product Specifications:
- Ozonator Voltage: 115v/240v. It comes with a voltage convertible 4-pin plug, so that it can be used with either 120V or 240V (50/60 Hz).
- Ozonator Cord Type: AMP
- Corona Discharge
- Up To 500 Gallons
- Cord Type: 4 Pin Amp. Cable: 5ft. cable
The Ultrazo3ne „¢ family of ozone generators were designed by Balboa ®, the leader in reliability in spa controls for over 20 years. This compact ozone generators have a smaller footprint and save energy as well. Balboa's ozone generators are fully epoxy potted protecting them from harsh corroding environments, producing stable ozone output over a wide range of temperatures.
Documents:
- 59297-KIT Ozone install inst
- 59297-KIT Ozone wiring install
SKU: 59297
MPN: 59297
Model: Ultrazone
UPC: 685984931450
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Approval Marks; UL/cUL
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
