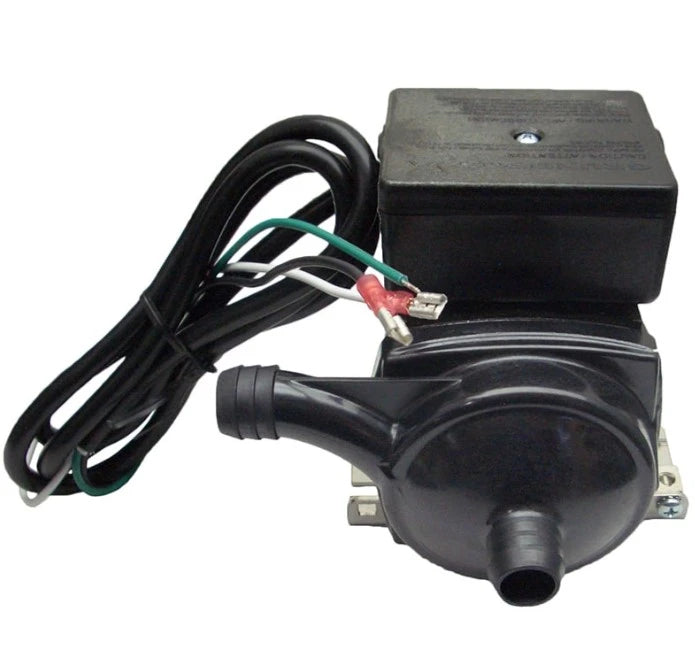

6000-125NA Grundfos Circulation Pump, 230V, 3/4"

6000-125NA Grundfos Circulation Pump, 230V Retrofit

• 6500-080NA may be sent as a replacement, which is the same pump with a 4-pin plug.
• Grundfos mfg redesign

• Use in low-low flow/circulation pump systems found in numerous Jacuzzi, Sundance Spas and Dimension One Spas.

Specifications:

• Volts: 230v
• Amperage: 0.7
• 60HZ
• Intake Size: 3/4" Barb
• Discharge Size: 3/4" Barb
• Flow: 15 GPM
• Cord Type: 3 Wire with terminated ends (may have a standard 4 pin plug)
• 114 Watts

Installation:

This wet end can be rotated by removing the four screws behind the front volute

Also Known as (or can replace): 6500-080

MPN: 6000-125NA

SM-909-NH-14 3/4" Barb 230v, SM-909-NHW-14, SM-909-NH-18, SM-909-NHW-18, SM-909-NH-26, SM-909-NHW-26, SM-959-NHW-26, SM-1212-NH-26, E10-NSHNSW-20, 6000-125, 6500-035, SD6000-125, SD6000-125RK, 130172, 6000-125NA, 34-601-1000
