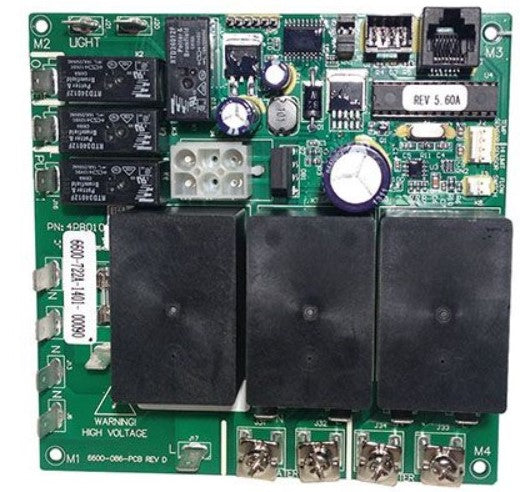

6600-289 - replaced with 6600-722 Sundance Spa and Jacuzzi Circuit Board (rev 5.57)

6600-289/6600-722 Sundance and Jacuzzi Spa Circuit Board (rev 5.57+)

Replaced by 6600-722, which is what will be sent.

The 6600-289 circuit board with is used for revision beginning with 5 in spas without a circulation pump

The 6600-289 revision 5.57+ is used for the following Sundance Spa models:

• 2000-2002 Sweetwater Aruba (Replaces 6600- 082 and 6600-089 circuit board)
• 2000-2002 Sweetwater Bali (Replaces 6600- 082 and 6600-089 circuit board)
• 2000-2002 Sweetwater Cyprus (Replaces 6600- 082 and 6600-089 circuit board )
• 2003 - 2005 Del Sol Redondo
• 2003 - 2005 Del Sol Hermosa
• 2006 to Newer Sundance Denali 680 (1 pump system)
• 2006 to Newer Sundance Tacoma 680 (1 pump system)

Wiring Diagram:

We have extensive experience with Sundance Spas and will be happy to answer any questions you have please email or call us today.

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

Manufacturer: Sundance Spas
Manufacturer Number: 6660-289
Manufacturer Warranty: 1 year parts.
