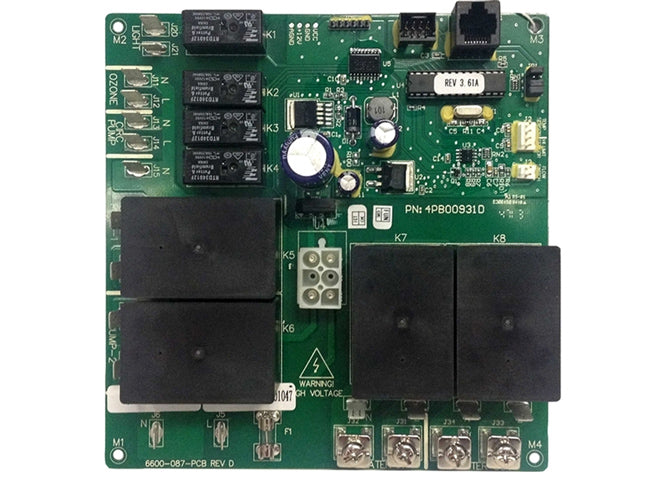

6600-726 Sundance® Circuit Board w/Circ Pump (LX-15)

Jacuzzi/Sundance® 6600-726 Circuit Board w/Circ Pump (LX-15)

The 6600-726 Sundance® Circuit Board is designed with reliability and convenience in mind. Operates with a Circ Pump (LX-15), this board is a cost-effective and efficient solution to your circuit board replacement needs. Its compatibility with Sundance® spas provides a seamless integration, while its unique construction ensures long-term performance.

The alternative part for spas that doesn't have a circulation pump is 6600-720.

Used in the following Sundance® models:

• 2008+ 1-pump 680 Burlington® model equipped with a circulation pump
• 2007+ 680 Hartford® and Hawthorne® models equipped with a Circulation Pump
• 2007+ 780 Hamilton, Chelsee®, Certa and Camden® (1-pump)
• 2005 - 2006 780 Series Sundance® Spas (Palermo, Bahia, Cayman)
• 2003 - 2005 Sweetwater Board (Palermo, Bahia, and Cayman)
• Replaces the 6600-087 and 6600-088 Board 3.56, with circulation pump systems.
• If your system has a 6600-087 and the EPROM chip that begins with a 5 (such as REV 5.54), then you have a 6600-287 board.

Replacement for:

• 6600-288
• 6600-088
• 6000-167

Note: This board only operates with a circulation pump. The alternative part for spas that doesn't have a circulation pump is 6600-720.

Jumper settings

Schematic

Set Up/Configuration

SKU: 6600-726
MPN: 6600-726
UPC: 680576081162
Manufacturer: Sundance® Spas
Warranty: 1 year (with manufacturer)
-----------------------------------
