Aqua-Flo by Gecko
91041925 Aqua Flo® Wet end pump XP2e 56FR, 2.5 HP
Couldn't load pickup availability

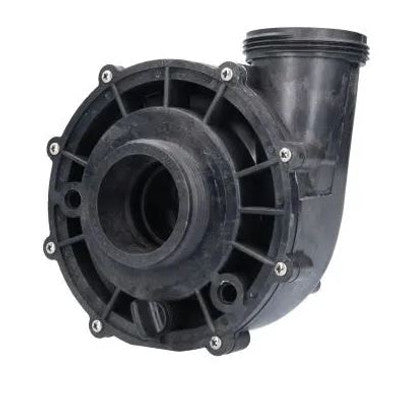

91041925 Aqua Flo® Wet end pump XP2e 56FR, 2.5 HP
Aqua-Flo® Wet End, FMXP2e, 2.5HP, SD, 56-Frame, 2"MBT
Features:
- Discharge Location Side
- Discharge Size 2" MBT
Product specifications:
- Horsepower 2.5
- Frame Size 56Y
Note: Measurement between the threaded brass inserts in the legs is exactly 4-1/8" center to center Inlet & Outlet measures 3 inches outside diameter
Note: There are two different 56 frame sizes in the FMXP2 series,
Note: This wet end will not fit an LX motor.
Replaces:
317003 , 433278 , 5038-25 , 5121-9 , 674031 , 900120589 , 91041634 , AF91041925000 and Nordic .11040029
In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp
SKU: 91041925
MPN: 91041925-000
Model: XP2e
UPC: 753610339748
Manufacturer: Gecko's
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
