52320 Balboa ® 2000 LE Circuit Board with M7 Technology (NLA)
Couldn't load pickup availability
52320 Balboa ® 2000 LE Circuit Board with M7 Technology | 52320-01 (NLA)

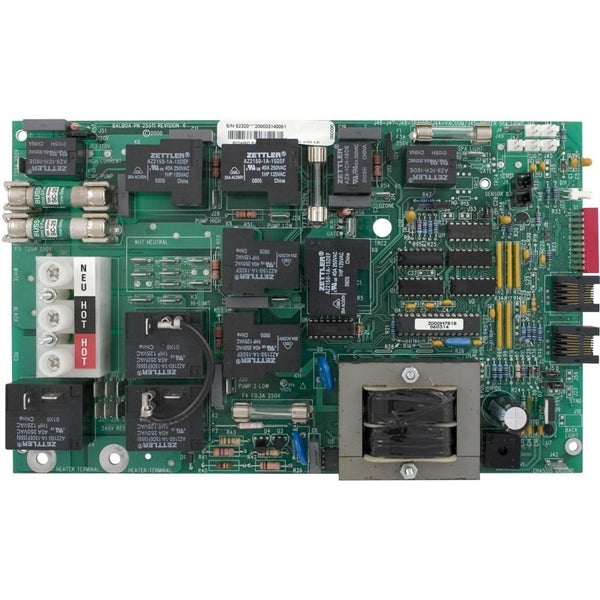

Balboa Water Group ® spa circuit board part number 52320 is a 2000 LE circuit board with M7 technology
Board is no longer available, but in most cases, a retrofit kit will work as a complete system replacement. Please contact us with questions about the best retrofit options.
Features:
- Board Chip Number: 2000M7R1A - 2000M7R1B
Product specifications:
- It does not use a pressure switch
- Phone style plug connector
- Can power an auxiliary control panel.
Replaces: KEYS31R1(x) (53732-01)
Known as: 52319
Also listed under following: 24773, ICONM7R1A, 52762
This spa circuit board works with the following topside control panels: 51247-01, 53189-01, 53811, 54170-01, 54716, 54548
SKU: 52320
MPN: 52320-01
Model: 2000 LE
UPC: 702082346488
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs
As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
