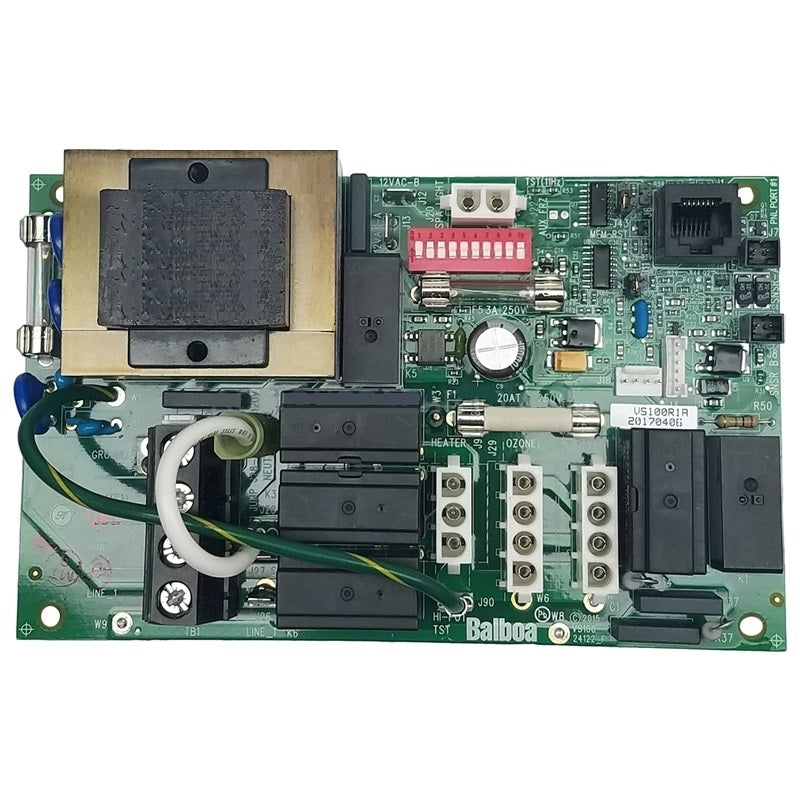

56297 Balboa ® Circuit Board for VS100 Control Systems, 120V
Couldn't load pickup availability
56297 Balboa ® Circuit Board for VS100 Systems | 56297-02
Balboa Water Group ® Circuit board used on Balboa ® VS100, 120V spa control systems.
Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.
Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board €“ Spa Parts Experts
Features:
- Chip Number: VS100C/VS100R1A
- Digital Duplex
Product Specifications:
- 115-120VAC, 60HZ, 12A, Circuit Breaker Rating 15A
- 3 Wires (Hot Neutral, Ground)
- Cord Connected Class A GFCI Required
- 240VAC, 60HZ, 30A, Class A GFCI-protected service 40A
- 3 Wires (Hot, Hot, Ground)
- Cable: 8 Pin Phone style
Alternate: 56299, 3-60-6032
Replaces: 952994
Note: Verify the chip number on your current board
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty
Documents:
SKU: 56297
MPN: 56297
Model: VS100
UPC: N/A
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts
Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs
As with all electrical items we cannot take it back other than for manufacturer's warranty
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
