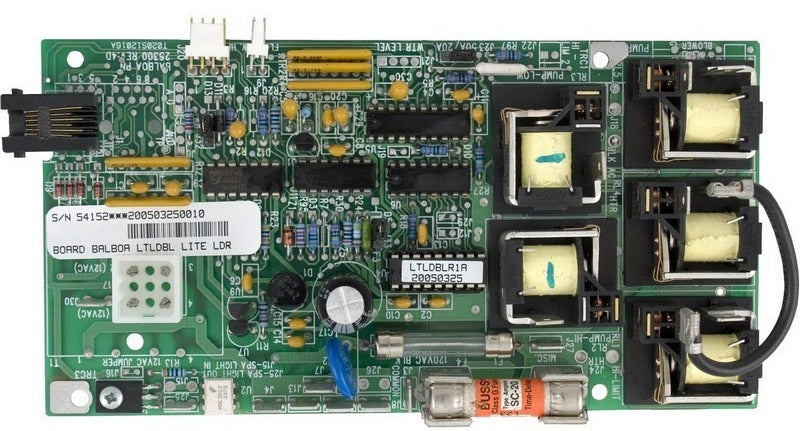

54152 Balboa® Lite Leader Circuit Board

54152 Balboa® Lite Leader Circuit Board

 Balboa® Lite Leader Circuit Board

Features:

• Chip Number: LTLDBLR1(x)

Product specifications:

• 6 Pin Phone Cable
• Supports 2 speed pump, ozonator and a light
• 120volt Hot plug for blower
• Does not support an air blower.

*To use a blower with this board you will need a separate air switch and button

Note: This board will not retrofit with Lite Digital boards and Whirlpool Systems.

          This circuit board has been replaced with a new part number 33-0031

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

SKU: 54152
MPN: 54152
Model: Lite
UPC: N/A
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.

Note:

THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty
