Balboa Water Group

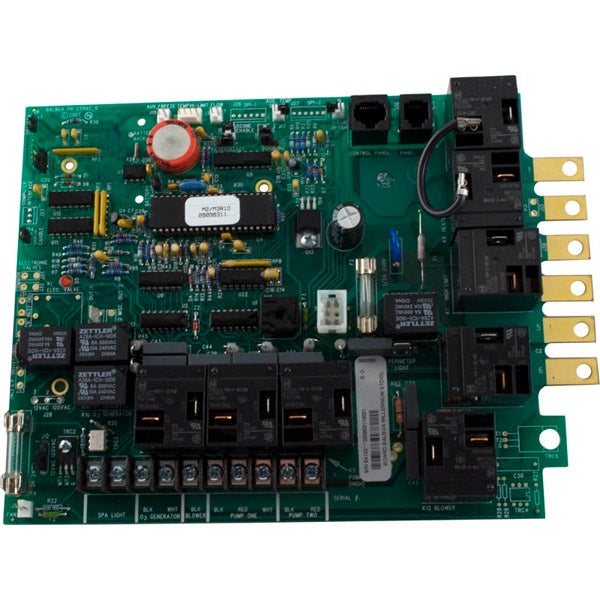

52518 Balboa® Retrofit kit for M2/M3 Circuit Board w/Wiring Diagram and Overlay

$319.00
$319.00
Tax included. Shipping calculated at checkout.

52518 Balboa® Retrofit kit for M2 / M3 Board, with Wiring Diagram and Topside Overlay

 Balboa® Circuit Board, M2/M3 Deluxe/Serial Standard.

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

Features:

  • Includes wiring diagram sticker
  • Includes reference card
  • Topside overlay
  • Balboa Chip M2/M3R1*
  • American Pool  Chip APS100R2*
  • Clearwater  Chip P2W95R1*

Product Specifications:

  • Phone style plug connector
  • Supports a 2-speed primary pump and secondary pump, blower, circ pump, ozonator/UVC, & light.
  • Attention: This circuit board will not operate a 3 pump system for the listed chip numbers

Notes:

  • Replaces: Balboa® 54122 Circuit Board.

  • This board will work with the following topside controls: 51057, 51058, 51247, 51452, 53189, 53811, 54108, 54128, 54155, 54156, 54170, 51216 (auxiliary topside).

 Alternate: 2000DR1C, 2000DR2B, 9710-07, 50975, 510ER1A, 51408, 51511, 51545, 51789, 520ER1C, 52518, 54122, 9710-07, AC100R1A, APS100R2A, B240DGR2A, B240DGR2B, B240DGR2D, C3000R1C, C3000R1D, C4000R1A, DAK100R1A, DAK100R1B, DS100R1C, DS34R2A, DS34R2B, DS4R3C, FW150R1B, H150R2A, H150R2C, HS100R1A, JET100R1A, L101R1B, LB104R1B, LB104R1C, LB104R1D, LB104R1E, M2/M3R1D, MAJ200R1B, MAJ200R1D, MAS300R1F, Q1043R2A, SAR200R2A, SCS100R1A, SS3000R1A, WS200R1A, ZX2000R2A, ZX2000R2B, BAL52518, 611313

Documents:

Note:  Fit for many of manufacturers OEM boards and is identical to 54000 and 54001 circuit boards

 SKU: 52518
MPN: 52518
MODELO: DeLuxe
UPC: 753610479710
Manufacturer Balboa Water Group®
Warranty by manufacturer 1 year
-----------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.

Note:
THIS IS A NON RETORNABLE ITEM

Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)

Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's.

 Once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty.
