BVS501Z Balboa ® VS Control System with M7 technology | G4152
Couldn't load pickup availability

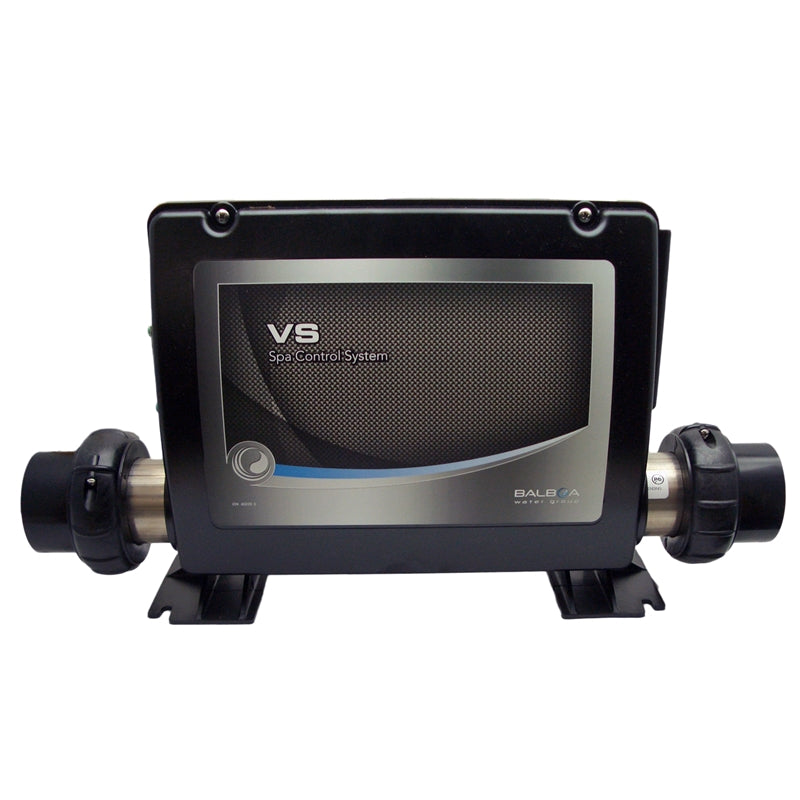

G4152 BVS501Z Balboa ® VS Control System | The Ultimate Control System for Your Spa.
Balboa ® System VA501Z 1 Pump, with blower
G4152 Balboa ® VS control system with heater. The Value Series (VS) family of hot tub control systems were designed using Balboa's patented M7 ® temperature and water.
flow sensing technology and a new universal control platform.
These features increase the reliability, ease of installation and serviceability of the control.
Features:
- Runs 110 or 220 V
- Operates up to 2 pumps, plus an optional circ pump
- Designed for Easy Installation and Service
- US & Canadian safety approvals
- Custom designed plastic enclosure
- Integrated functionality
- State of the art design
- M7 ® flow and temperature sensors - replaces failure-prone
mechanical pressure/flow switch
Product specifications:
- Power Supply: 120/240V (convertible)
- Pump 1: 1-Speed (circ) or 2-Speed
- Pump 2: Blower (1-speed)
- Panel Capacity: 2
Power Requirements:
- 120/240VAC, 60Hz, 16/32A, Class A GFCI-protected service (Circuit Breaker rating = 20/40A max.)
- 3 or 4 wires [hot, hot (optional), neutral, ground].
Replaces: VS501Z
Alternates: 54217, 54220
Documents:
- G4152 Hot sheet
- G4152 Operation guide
SKU: BVS501
MPN: G4152
Model: BVS501Z
UPC: N/A
Manufacturer: Balboa Water Group ®
Warranty: 1 year (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
