54369 Balboa® VS500 Circuit Board (54357-03)

Regular price $329.00
Regular price $349.00 Sale price $329.00
Tax included. Shipping calculated at checkout.

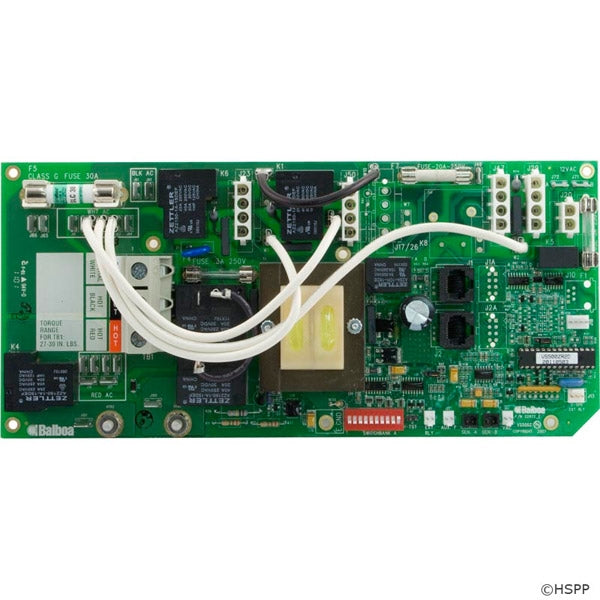

54369 Balboa® VS500 Circuit Board

**Replaced with 54357-03

Balboa® VS500 Circuit Board with M7 technology.

Features:

  • Balboa® Chip VS500R1A
  • Balboa® Chip VS500R1B
  • Balboa® Chip VS500ZR2D
  • Keys Backyard Spas 100CR1*
  • Keys Backyard Spas 100DR1*

Product specifications:

  • This board does not require a pressure switch or external sensors
  • Phone style
  • Will operate:

Pump1 (2 Speed or 1 Speed)
Circulation Pump
Ozonator
Audio/Video (AC Hot Output)
Light
NO AIR BLOWER

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

NoteIf you are using an ozonator with this VS500SZ circuit board it will need to be the same voltage as pump one

This spa circuit board works with the following topside control panels (among others);
52487, 54105

Also listed under following: 53795, 54291-02, 54368-0 1
54369, 54369-01, 54369-02, 54369-03, 55032, 59005-01, GV5500R2B

Note: This circuit board has been discontinued and replaced with 54357

SKU: 54369
MPN: 54369
Model: VS500
UPC: 637509106454
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.

Note:

THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty
