Balboa Water Group

Balboa VS500Z Control System Retrofit Kit 54219

$599.00
$599.00
Tax included. Shipping calculated at checkout.
0 ( 0  Reviews )

Balboa VS500Z Control System 54219

Obsolete, but can be replaced with the following, which will just have different sized control panels:

  1. G6405-01 Balboa ® Kit BP7 w/TP500 4.0 kW (1-2 Pumps)

  2. G6402 Balboa ® BP100 Bundle w/TP200T, Control System 4.0kW with Mounted

  3. G6406 Balboa ® | BP7 Retrofit Kit 4.0 kW w/TP600

Balboa Water Group control system 54219 is a complete control system that makes for a great retrofit for 1 pump systems. Designed to work on 120 or 240 this system will operate a 2 speed pump, an option circulation pump (23 gallons per minute minimum), a 12 volt light, an optional ozone, and an optional audio video component.

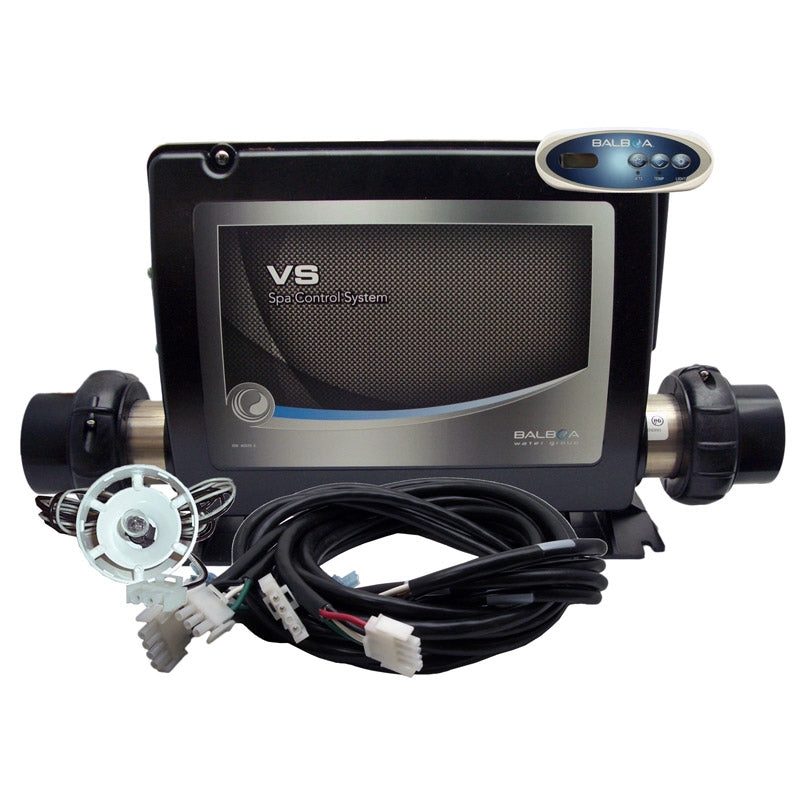

This VS500Z control system includes:

  • M7 Technology, no pressure switch required
  • Seal corrosion proof plastic box
  • 15" 4.0kW Heater
  • Mini oval topside with adapter plate
  • Pump cords
  • Heater tail pieces and gaskets

Balboa 54219 VS500Z measures:

  • Control box measures 10-9/16"H x 12-1/4"W x 4-1/2"D
  • Included Mini Oval Topside measures 4.34" x 1.58"
  • Included topside adapter plate (if required)outside measures 8-1/2" x 3-1/2"
  • Included heater measures 15" x 2"
  • Pump cords
  • Heater tail pieces and gaskets

Manufacturer: Balboa Water Group
Manufacturer Number: 54219
Manufacturer Warranty: 1 year part


c

Frequently Asked Questions

What does a spa air blower do? ▼

A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.

Do all hot tubs have an air blower? ▼

No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.

How do I know if my spa air blower needs replacement? ▼

Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.

What horsepower air blower do I need for my spa? ▼

Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.

Can water damage a spa air blower? ▼

Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.

Why is my spa blower making a loud noise? ▼

A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.

Can I replace a spa air blower myself? ▼

Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.

Does a spa air blower heat the water? ▼

No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
