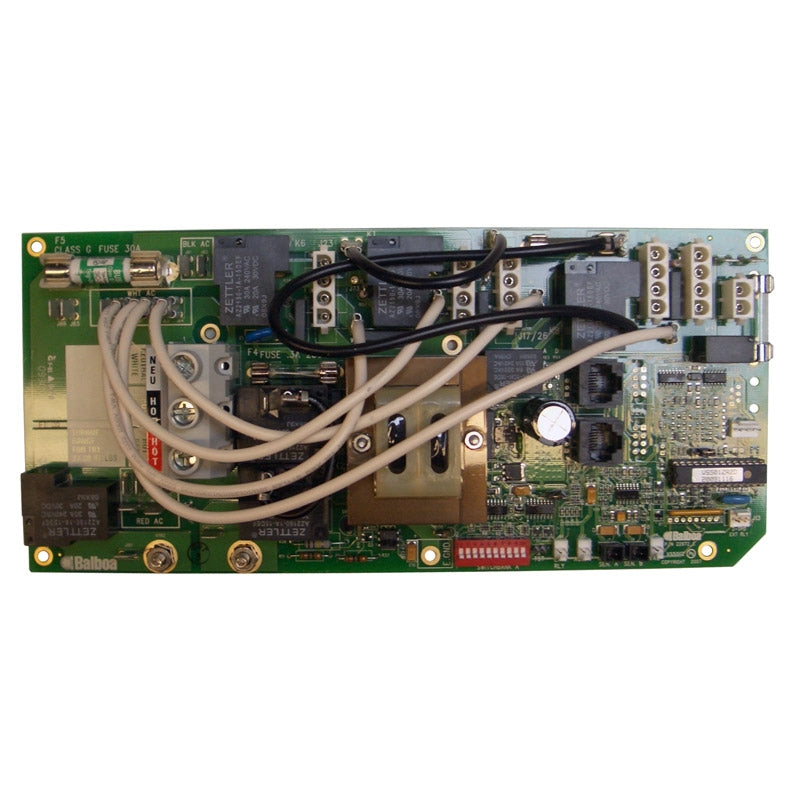

54378 Balboa ® VS501S Circuit Board
Balboa ® VS501S Circuit Board M7 technology
*Replaced with 54372 Balboa ® |VS510SZ Circuit Board
Features:
- Chip number VS501SZR20
- Don't need a pressure switch
Product specifications:
Will operate with:
- A 2 Speed Pump (120 or 240 volts)
- A 1 Speed Pump or A Blower (120 or 240 volts)
- A Circulation Pump (120 or 240 volts)
- An Auxiliary Accessory
- An Ozone (Voltage must match pump 1)
- A 12 volt light
Also known as: 54378-01 / 54378-02 / 54378-03 / VS501SZRD2 / VS501SZR1A
Used In: VS501S and VS501SZ Control Boxes
Alternates: 3-60-0092, 54378-01, 54378-03 (Balboa), 3-60-0092, 59-138-1682
54378
*Replaced with 54372 Balboa ® |VS510SZ Circuit Board
SKU: 54378
MPN: 54378
Model: VS501S
UPC: 710033383758
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.
Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board €“ Spa Parts Experts
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs
As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
