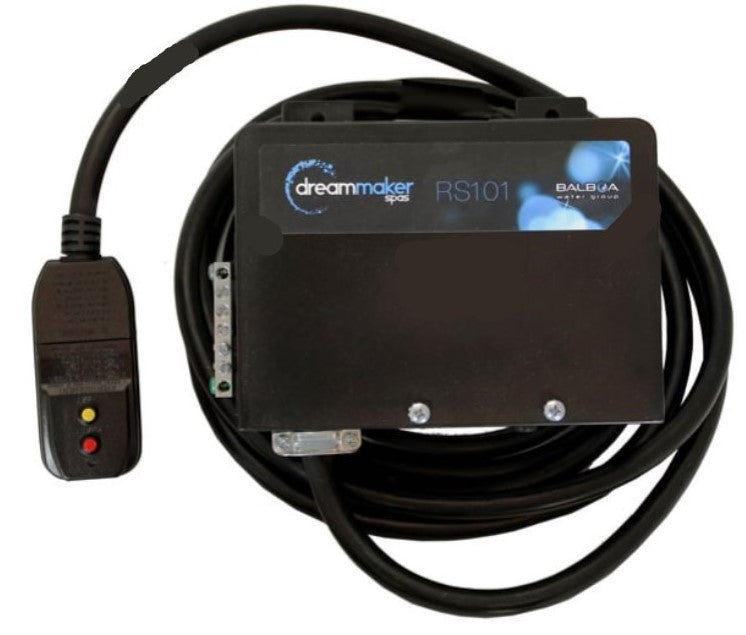

RS101 Dream Maker Control Box 303473-nh

RS101 Dream Maker Control Box 303473-nh

Product Features:

• Voltage: 115v / 230v
• Circuit Breaker Rating: 20A (115v) & 50A (230v)
• System Series: Balboa RS101 DM
• Configuration: 1 Pump, Ozone, 12v Light
• Keypad Connection: Standard 8 Pin
• Pump #1 Dual Speed
• Ozone
• 12v Light

Specifications:

• Chip Number:  RS101R1A, RS101R1B , RS101R1C
• Control Box:  56402-05, 56403-03. 56403-04, 56403-05

Technical and Installation

• Notes: This board is not plug and play. Arrangement of "White" wires will need to be moved to the same location as on the original board, and there are dipswitches and jumpers that need to be changed

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

SKU: 303473-nh
MPN: 303473-nh
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)

-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.

Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items we cannot take it back other than for manufacturer's warranty

 Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
