G4111 Balboa® VS100 Control System (NLA, see Description)

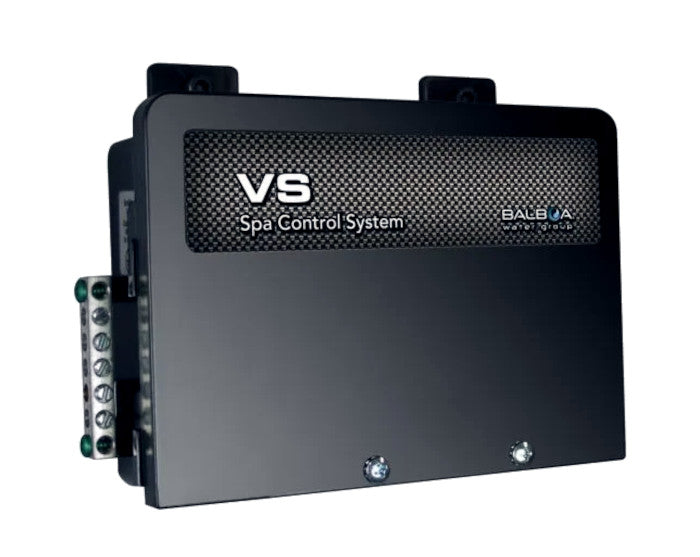

G4111 Balboa® VS100 Control System

NLA, replaced by board only: 56297 Balboa® | Circuit Board VS100, 120V, 60Hz | Spa Parts Experts

***Control Systems and circuit boards are not "plug and play" - they will require correct component voltage set-up and spa configuration. Please see the "Technical and Installation" below for more information. Please also follow the wiring schematics on the back side of the spa pack cover.***

Balboa® Control System VS100 inherits the essence of Balboa’s line of spa systems. It uses the classic, easy to operate panels, with minimal features needed for comfort and is completely trustworthy.

NOTES:

• Does not include Power Supply Cord/GFCI
• Topside and Heater sold separately. Remote heater (MPN: 58203-01)

Features:

• Energy efficient
• No Remote Heater
• VS100 120/220 Volt Control box Only (Includes Circuit Board)
• Great for tight spaces
• Pump has two speeds for two levels of comfort.
• Readily compatible with either 120V or 240V input voltages for ease of installation.
• Chip number: VS100
• Control Box Number: 56473-03 / 56296-02 / 56296-03 / 56572

Product specifications:

• Voltage: 120/240V
• Enclosure: 7.12" x 6.12" x 2.4" (W x H x D), Plastic
• Sensors: Not Included
• Keypad: Not Included
• Heater Style: Less Heater (Not Included. Use 0603-421002)
• System Voltage: 120/240V
• Pump 1 circuit: 2 speed, 110V, 10A Max (No Cord)
• Ozone circuit: 110V, 1A Max (No Cord)
• Light circuit: 12V, 1A Max (No Cord)
• Heater circuit: 110/220V, 18A Max (No Cord)
• Component Configuration: 120v/240v Pump 1 (2-SP)
• Works with the following keypads (Not Included): VL200, VL240, VL260, VL401, VL403

Replacement for: RS101, 56473-03, 56296-02,56296-03, 56572

Alternates: 54808, BB54808

Technical Information:

Documents:

•  G4111 Tech sheet
•  G4111 Comm Sheet

SKU: G4111
MPN: G4111 or 56473-03
Model: VS100
UPC: N/A
Manufacturer: Balboa Water Group
Warranty: 1 yr. (with manufacturer)

-----------------------------------------
