Balboa

G6402 Balboa® BP100 Bundle w/TP200T, Control System 4.0kW with Mounted Heater

$519.00
$519.00
Tax included. Shipping calculated at checkout.

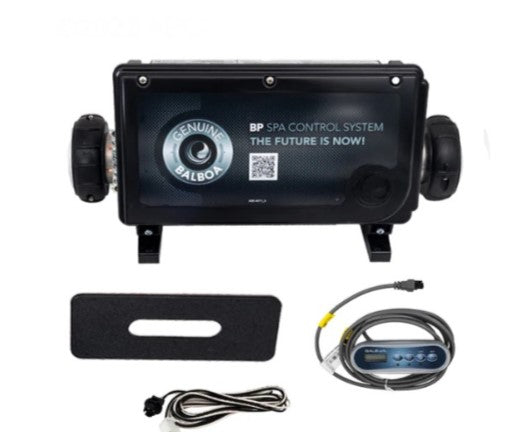

G6402 Balboa® BP100 Bundle w/TP200T, Control System 4.0kW with Mounted Heater

Balboa® Control System BP100G2 TP200T mounted heater

***Control Systems and circuit boards are not "plug and play" - they will require correct component voltage set-up and spa configuration. Please see the "Technical and Installation" below for more information. Please also follow the wiring schematics on the back side of the spa pack cover.***

Features:

  • Lowest cost entry level BP System
  • Works with all of Balboa’s TP Panels
  • Works with all of Balboa’s SpaTouch™ Panels
  • Compact size
  • Wifi compatible

Product Specifications:

  • Supply Voltage: 115v, 230v - 4 Wire
  • Heater Type: Mounted
  • Heater Wattage: 1.0kW, 4.0kW
  • Topside Included:  TP200T
  • Circ Pump Ready Optional 115v, Optional 230v
  • 50Hz, 60Hz

Notes: Pump 1, Circ Pump and Ozone must be the same voltage.
BP systems automatically detect 50Hz vs 60Hz.

Runs on 120V for single pump applications (some configuration is required).

It can run:

  • One 2-speed pump 120V or 240V* (Max 12.0 Amps)
  • Ozonator (120V or 240V*)
  • Dedicated circulation pump (min 23 GPM and 1-1/2" plumbing ) 120V or 240V (Pump #1 must be single speed for circ pump option)
  • 2nd single speed pump or blower (120V or 240V)
  • 12V light
  • Balboa ControlMySpa WiFi compatible (Sold Separately)

*The Balboa BP100G2 is factory configured for 240 volt applications, pump(s) and ozonator must be 240 volts.

Technical and Installation Documents:

SKU: G6402
MPN: G6402
Model: BP100
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)

-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.

 Disclaimer: The product image displayed is for illustrative purposes only.
