Balboa Water Group

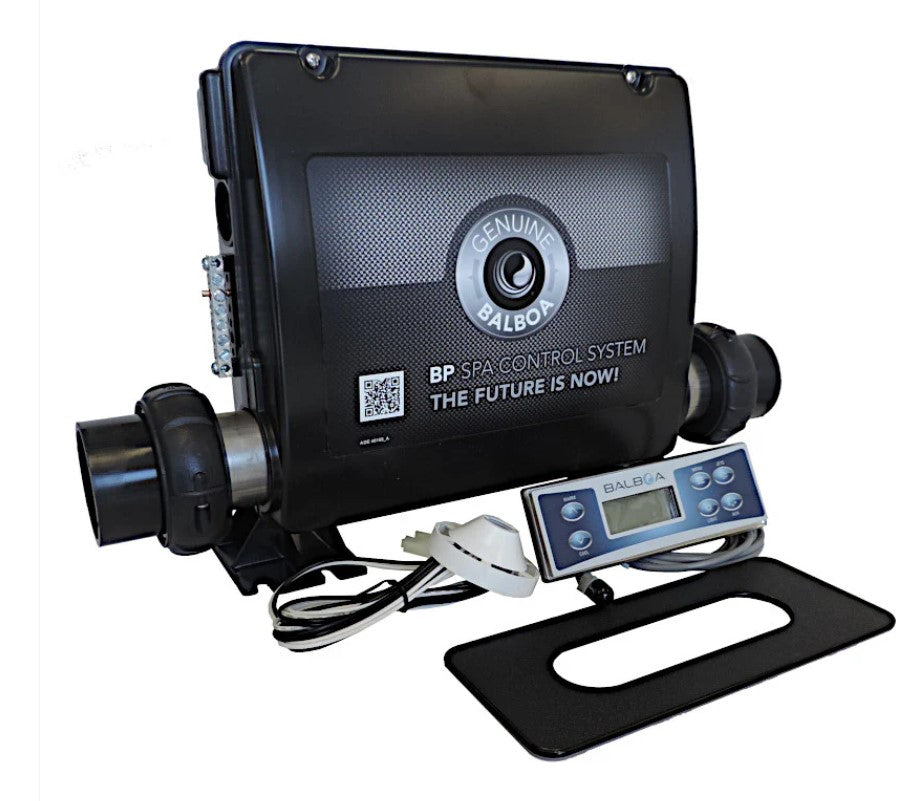

G6405 Balboa ® Kit BP7 w/TP500 4.0 kW (1-2 Pumps)

$599.00
$599.00 $599.00
Tax included. Shipping calculated at checkout.

G6405-01 Balboa ® Kit BP7 w/TP500 4.0 kW (1-2 Pumps)

Balboa ® Control System, Balboa, BP7 4kW, w/TP500 (1 or 2 Pump)

***Control Systems and circuit boards are not "plug and play" - they will require correct component voltage set-up and spa configuration. Please see the "Technical and Installation" below for more information. Please also follow the wiring schematics on the back side of the spa pack cover.***

Features:

The BP system is the most reliable and widely used in the industry. It comes with 7 relays and has 32 different setups and can power a spa with 1-4 pumps, including MicroSilk systems.

It can  replace  any  BP Balboa ® system*, while using the existing topside that is already installed on the spa.

*  Some exceptions may apply.

Supports all TP and SpaTouch €ž ¢ topsides (LED, Color LCD and Touchscreens), and all BP ancillary products (ControlMySpa €ž ¢, BBA €ž ¢, CZ €ž ¢ and Status Pro). It's Plug-N'-Click.

Includes:

  • System: Gen Balboa ® BP7 4.0kW
    800 INC (G4361)
  • Panel: Balboa ® TP500 (57238-01)
  • Parts included: Bezel (15480)
  • Panel Overlay: O/L Panel TP500 (17183)
  • Wire Assy: 8ft. for spa light (25098)

Product Specifications:

  • Supply Voltage:       230v - 3 Wire, 230v - 4 Wire
  • Heater Wattage:      4.0 kw
  • Circ Pump Ready:    Optional 115v/230v
  • 50Hz, 60Hz

Note:  This system can only be used as 220V.

Power Requirements:
240VAC, 50/60Hz*, 48A, Class A GFCI-protected service (Circuit Breaker = 60A max.), 4 wires [hot, hot, neutral, ground].

Replaces:  389172, VS300, VS500Z, VS501Z, VS501SZ, VS503SZ,  VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ

Alternates: 54219, 54216, 54217, 54220

Documents:

    SKU: 6405-01
    MPN: 6405-01
    Model: BP7
    UPC:  682470425905
    Manufacturer: Balboa Water Group ®
    Warranty: 1 yr. (with manufacturer)

    -----------------------------------

    Shop this and more spa parts at the best prices online at Spa Parts Experts.

    Disclaimer: The product image displayed is for illustrative purposes only.
    The actual product may vary in color, size, shape, or other physical attributes.
    We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
