G6406 BP7 Balboa® Topside Control 4.0 kW, Control Box Bundle With TP600
Couldn't load pickup availability
G6406 BP7 Balboa® Topside Control 4.0 kW Retrofit Kit with TP600
Balboa® Topside Control System Kit BP7 with TP600
***Control Systems and circuit boards are not "plug and play" - they will require correct component voltage set-up and spa configuration. Please see the "Technical and Installation" below for more information. Please also follow the wiring schematics on the back side of the spa pack cover.***
Features:
The BP7 has 32 different setups and can power a spa with 1-4 pumps, including MicroSilk systems. This programmable system can be configured in several different ways. The default is "Setup 21" which is setup to run one 2-speed pump.
- Supports all TP and SpaTouch topsides
- Plug-N-Click Heater
- WiFi compatible with 59303 Balboa ®|Wi-Fi Module Control My Spa Gateway

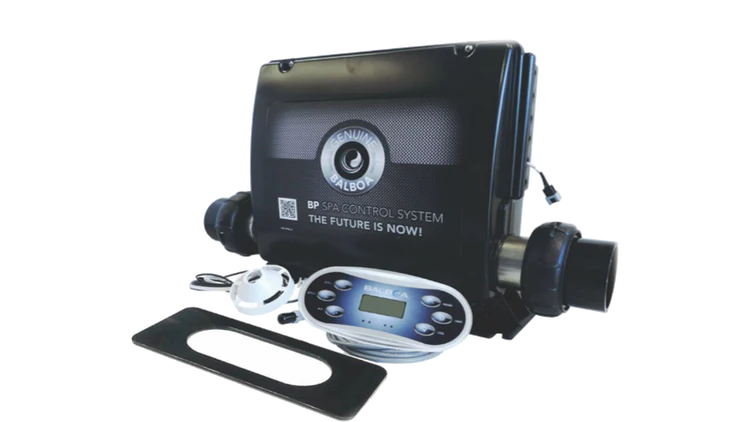

- Kit includes: system, panel, panel adapter plate, light cord and overlay(s)
Product Specifications:
- Main Circuit: 2-Speed Pump 120/240V
- 2nd Circuit: 1-Speed Blower or Pump 120/240V
- 3rd Circuit: 1-Speed Blower or Pump 120/240V
- Spaside Control: Included
- Heater Style: Straight/Fixed, Wattage - 4.0kW
- System Voltage: 120/240V
- Component Configuration: Pump1 + Pump2/Blower + Pump3
- System comes with a light cord (item number 21089). All other cords sold separately.
Replaces: 389173
Alternates: VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ, VS513Z, VS514SZ, VS515SZ, VS515Z, VS520Z, VS520SZ, VS520DZ, VS525Z
Technical and Installation Documents:
- G6406 Installation Operation guide
- BP7 G6406 Operation Manual
- G6406 User interface guide
- Setting configuration Video:
- Setting Voltages for Components:
SKU: G6406
MPN: G6406
Model: BP7
UPC: 0731946793458
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
