G6412 Balboa® BP100 Bundle w/TP200T, Control System 4.0kW Remote Heater
Couldn't load pickup availability
G6412 Balboa® BP100 Bundle w/TP200T, Control System 4.0kW Remote Heater
Balboa® Control System BP100G2 TP200T remote heater
Balboa® BP100 retrofit kit comes with a detached remote 4.0kW heater and a TP200T (4 button) topside control panel. This compact basic control system is ideal to retrofit in small hot tubs with 1 or 2 pumps.
***Control Systems and circuit boards are not "plug and play" - they will require correct component voltage set-up and spa configuration. Please see the "Technical and Installation" below for more information. Please also follow the wiring schematics on the back side of the spa pack cover.***
Features:
- Lowest cost entry level BP System
- Works with all of Balboa’s TP Panels
- Works with all of Balboa’s SpaTouch™ Panels
- Compact size with removable feet
- The system can be mounted with feet or brackets (metal brackets are sold separately
- Wifi
Product Specifications:
- Supply Voltage: 115v, 230v - 4 Wire
- Heater Type: Remote
- Heater Wattage: 1.0kW, 4.0kW
- Topside Included: TP200T
- Circ Pump Ready Optional 115v, Optional 230v
- 50Hz, 60Hz
Notes: Pump 1, Circ Pump and Ozone must be the same voltage.
BP systems automatically detect 50Hz vs 60Hz.
Runs on 120V for single pump applications (some configuration is required).
It can run:
- One 2-speed pump 120V or 240V* (Max 12.0 Amps)
- Ozonator (120V or 240V*)
- Dedicated circulation pump (min 23 GPM and 1-1/2" plumbing ) 120V or 240V (Pump #1 must be single speed for circ pump option)
- 2nd single speed pump or blower (120V or 240V)
- 12V light
- Balboa ControlMySpa WiFi compatible (Sold Separately)
*The Balboa BP100G2 is factory configured for 240 volt applications, pump(s) and ozonator must be 240 volts.

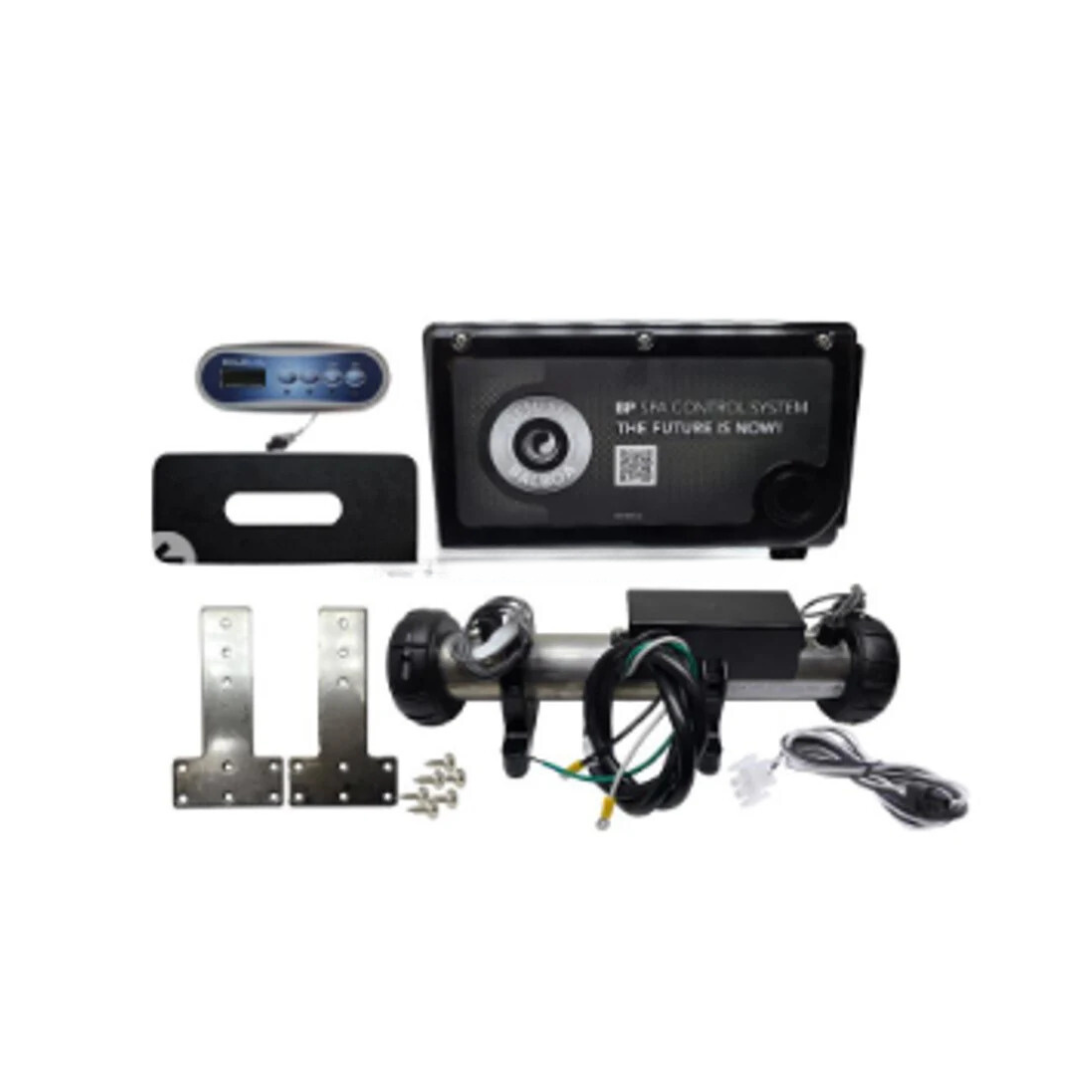

Kit Includes:
- (x1) G4310 - BP100G2 Control System
- (x1) G7413 - 4.0kW heater with sensors (15" x 2")
- (x1) 57282 - TP200T Topside control panel.
- 4.34" (11.02cm) x 1.58" (4.01cm)
- (x1) 17325 - Topside control panel overlay (Heat/Jets/Light/Aux buttons)
- (x1) Topside control panel adaptor plate 9"
- (22.86cm)x 4" (10.16cm)
- (x2) Tee shaped pack mounting brackets
- (x1) Light cord, 8'
- (x1) 2 speed pump cord
Technical and Installation Documents:
SKU: G6412
MPN: G6412-01
Model: BP100
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
