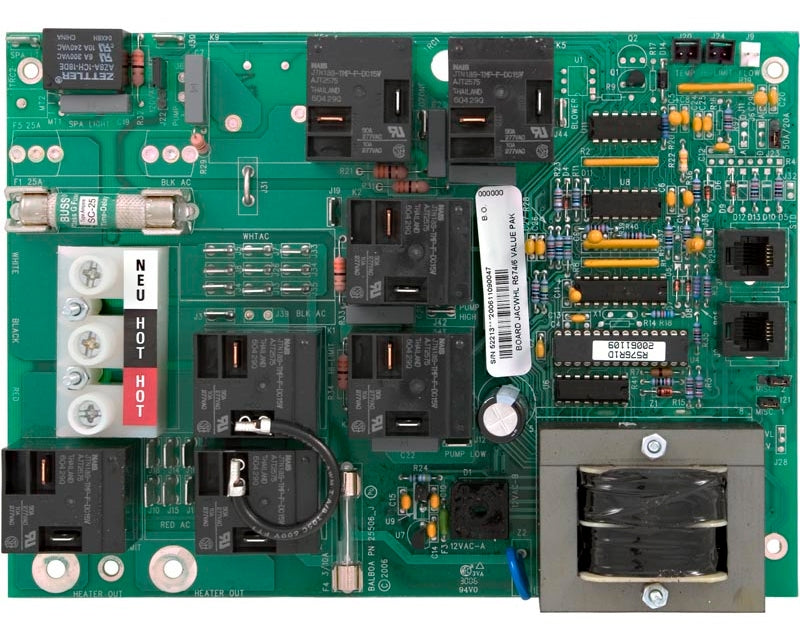

Balboa® & Jacuzzi® Spa Circuit board R574&R576

Features:

• Jacuzzi® Chip number: R574R1*
• Jacuzzi® Chip number: R576R1

Product specifications:

• Jumper position for pump configuration is :

                           Misc. 1 = Both pins captured = 2 single speed pumps
                           Misc. 1 = One pin captured = 1 two speed pump
                           Misc. 2 = Two pins captured = 2 hour filter cycle
                           Misc. 2 = One pin captured = 5 hour filter cycle

• Both pins are below the topside jacks and at the top right of the transformer.

Also listed under following: 9710-28

Also known as the Jacuzzi® board R574 and R576.

Used on Jacuzzi® models Z-110, Z-140, Z-145, Z-150.

Identical to: R576R1A, R576, BAL52213, 9710-28

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

SKU: 52213
MPN: 52213
Model: N/A
UPC: 637509108335
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.

Note:
THIS IS A NON RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items we cannot take it back other than for manufacturer's warranty
