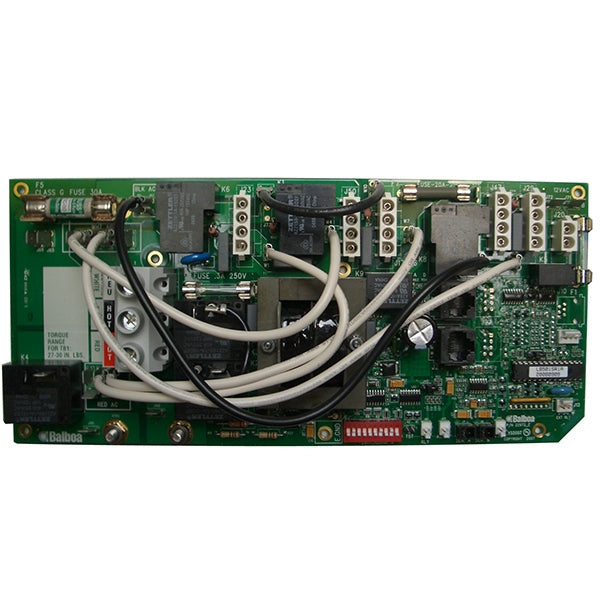

54341 Leisure Bay® LB501S Circuit Board

54341 Leisure Bay LB501S Circuit Board

Leisure Bay® Spa Circuit Board LB501S

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

Features:

• Chip Numbers LB500S / LB501S
• Also replaces Chip Number LB50XSR1A, LB500SR1A, LB500SR1B, LB501SR1A

Product specifications:

• Control box numbers: 54340 / 53352 /  54348 /53408-01
• Board numbers 54341, 53353,53409 or 54349
• The control box number for this system is 53352, and it works with the 307014

Alternate Part Numbers: 4054341 (LMI), 53353-01 (Balboa), 59-138-1752,

SKU: 054341
MPN: 054341
Model: LB
UPC: 753610479925
Manufacturer: LMI Roto Mold®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.

Note:

THIS IS NON A RETORNABLE ITEM
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips)
Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs

As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty

Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
