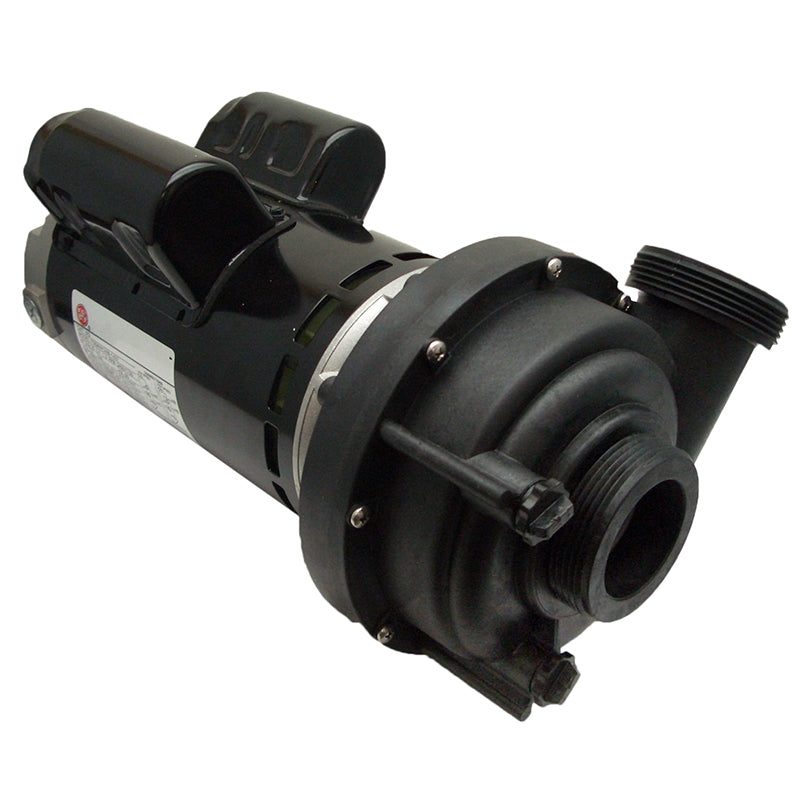

6500-343 Sundance ® Spas TheraMax 2 Speed 2.5HP 230V 48FR Baseless Spa Pump
Couldn't load pickup availability
Sundance Spas Theramax 2.5 HP 2 Speed Spa Pump | 6500-343
Sundance ® Spa pump 2.5 HP 2 speed, 230-240 volts.
Use with Pump Mounting Bracket 48 Frame 6000-532 – Spa Parts Experts
Features:
- Baseless
- Designed with a removable motor base that can rotate to any position you need
Product Specifications:
- 2.5 Horsepower
- 2 Speed
- 48 Frame
- 230 Volts
- 11 Amp
- 2" Suction and Discharge
- Side Discharge
- Discharge and outer diameter of 3 1/16".
Used:
6500-347, 6500-128, 6500-138, 6500-260, 6500-265, 6500-757, 6500-762, 6500-765, 6500-768, 6500-092, 6500-094 Thermax: 06120193-2, 06125198-2, 06120193-210, 4234211-S
Jacuzzi ® Models: J-385, J-365, J-355, J-345, J-230 & J-335 (until 7/2010) J-325 (2005-06) J-270 & J-280 (2007-July 2010) J-360 (2002-03)
Also used in: Altamar (1998-2003), Bahia (11/2002+), Calypso (1997), Cameo/Optima (1997-2003), Marin (1998-1999 And 2004+), Telluride Model S/N #TL34439+ (1998-4/99) and Maxxus (1999+ For Pump 1).
Replaces: The old 6500-347 as used in Calypso and other models
Alternates: SD6500-343, SD6500-343PK, 6500-343
Notes:
- For Sundance and Jacuzzi spas from 1999 to current.
- Recommended to replace the O-rings.
If you have questions regarding the information from your pump motor, please see our motor label page. Spa Parts Experts is here to help; if you have a question, contact us. Order your new spa pump today!
*NOTE: Does NOT come with 6000-532 bracket, must order separately
SKU: 6500-343
MPN: 6500-343
Model: Theramax
UPC: 682318852627
Manufacturer: Sundance ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts!
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
