X800660 Master Spas® Circuit Board, MAS25R1B

Regular price $188.99
Regular price Sale price $188.99
Tax included. Shipping calculated at checkout.

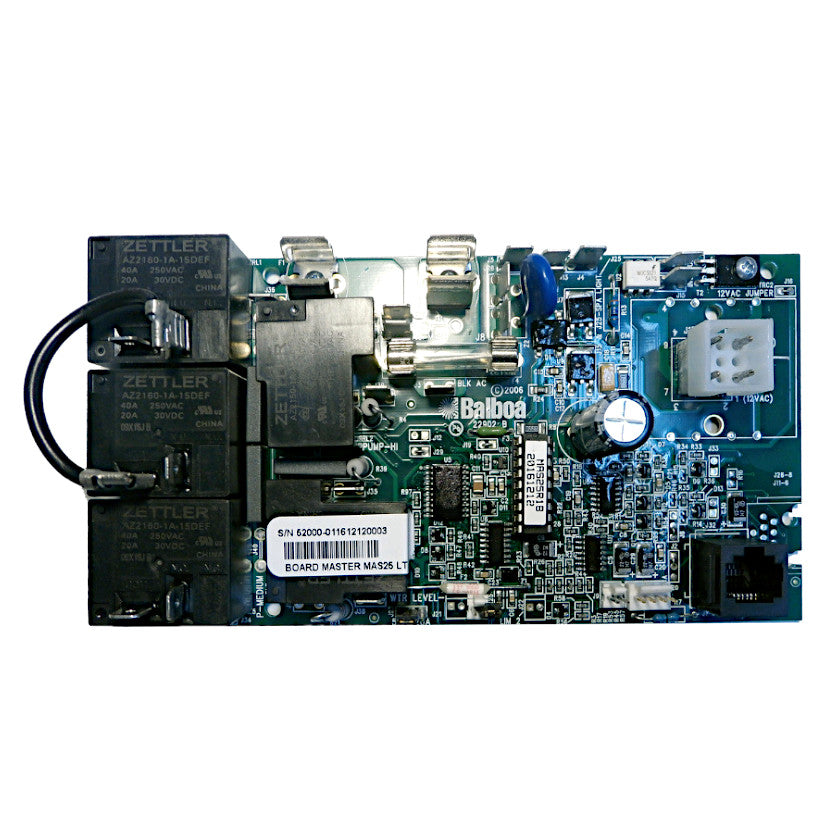

X800660 Master Spas® Circuit Board, MAS25R1B

Master Spas® Circuit Board, Chip MAS25R1B.

Features:

  • Chip Number MAS25R1A and MAS25R1B (X800660)

Product specifications:

  • Face Diameter: 7.0" (17.78 cm)
  • Length: 3.5" (8.89 cm)

Compatible with:

  • Down East Spas (1999-2002) Portsmouth 2-Pump, Portsmouth 1-Pump, Exeter 1-Pump, Exeter 2-Pump, Bar Harbor 240V, Newport, D-5000 2-Pump, D-5000 1-Pump, D-4000 2-Pump, D-4000 1-Pump, D-3000, Providence D, Providence S
  • Legend Series Master Spas (2000-2001) 650 SS, 570 SS

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

Documents:

X800660 Schematic

Alternate: Board number: 52000.

NOTES:

  • Be sure to set the jumpers (marked "water level sensor") running along the edge of the board in the same configuration as the original board.  The board was manufactured to operate two different style topsides, it is this jumper that "selects" the proper topside control.

  • Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips). Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs.

  • As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty.

SKU: X800660
MPN: X800660
Model: MAS25R1B
UPC: N/A
Manufacturer: Balboa® / Master Spas®
Warranty with manufacturer
-----------------------------------------
