X801115 Master Spas ® Circuit Board, MS1600
Couldn't load pickup availability

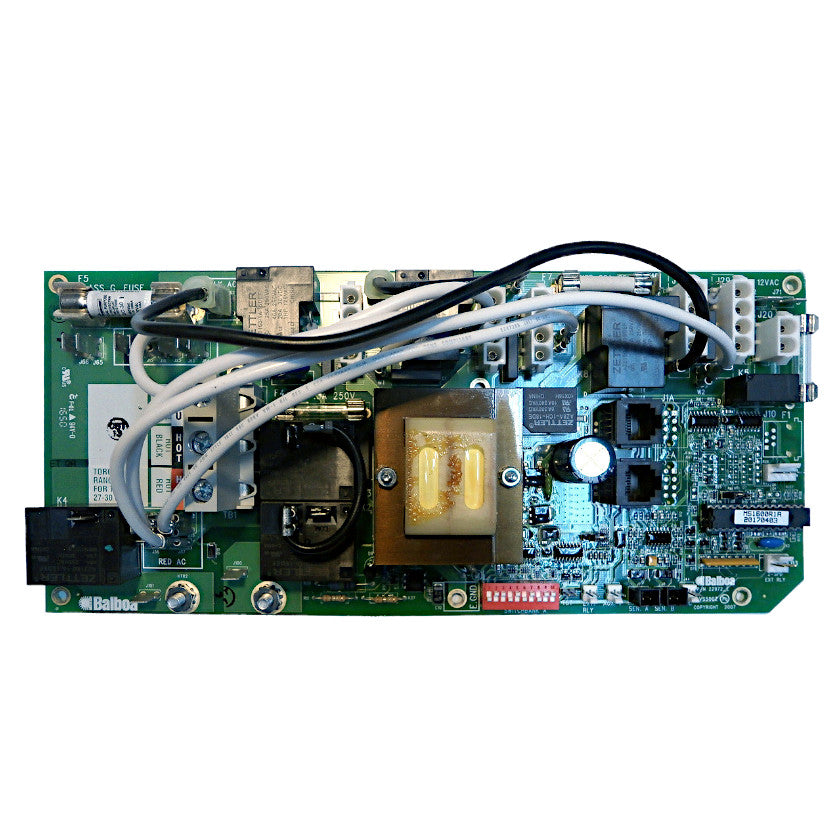

X801115 Master Spas ® Circuit Board, MS1600
Master Spa ® Circuit Board MS1600.
Features:
- Chip Number: MS1600R1x
Product specifications:
- Face Diameter: 11.0"
- Length: 5.0"
Replaces: Balboa ® 55241. VS501SZ.
Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.
Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board €“ Spa Parts Experts
Compatible with:
- Legend Series Master Spas (2009) LSX 557
- Twilight Series Spas (2009, 2014-2017) TS 240, TS 6.2, TS 67.25, TS 7.2, TS 7.25, TS 8.2, TS 8.25, TS 8.3, TS 8.35, TS 87.3
- Down East Spas (2009, 2010) Windsor SE STS, Windsor 3 STS, East Hampton SE, Portsmouth SE, Portsmouth 3, Windsor SE, Windsor 3, Exeter SE, Exeter 3, Cape Cod SE, Cape Cod 3
- H2X Swim Spas (2015-2017) Therapool SE, Therapool Deep, Trainer 15, Trainer 15 Deep, Trainer 18, Trainer 19, Trainer 19 Deep
- Michael Phelps Swim Spas (2016, 2017) Momentum 80, Momentum 80 Deep
NOTE:
-
Remember that it's very important that you don't order a circuit board based on looks (several boards look alike but have different software or chips). Some circuit boards come with a large variety of software. Be sure to order the correct one for your needs.
As with all electrical items once a circuit board has been installed, we cannot take it back other than for manufacturer's warranty.
Important Board Installation Warranty Information
SKU: X801115
MPN: X801115
Model: MS1600
UPC: N/A
Manufacturer: Master Spas ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Trust the experts at Spa Parts Experts for top-quality spa parts at unbeatable prices!
Note:
THIS IS A NON RETORNABLE ITEM
DISCLAIMER: The product image displayed is for illustrative purposes only. The actual product may vary in color, size, shape, or other physical attributes. We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
