YE5 Bundled system BDLYE5K450 w/ Topside and Cables, Gecko

YE5 Bundled system BDLYE5K450 w/ Topside and Cables, Gecko

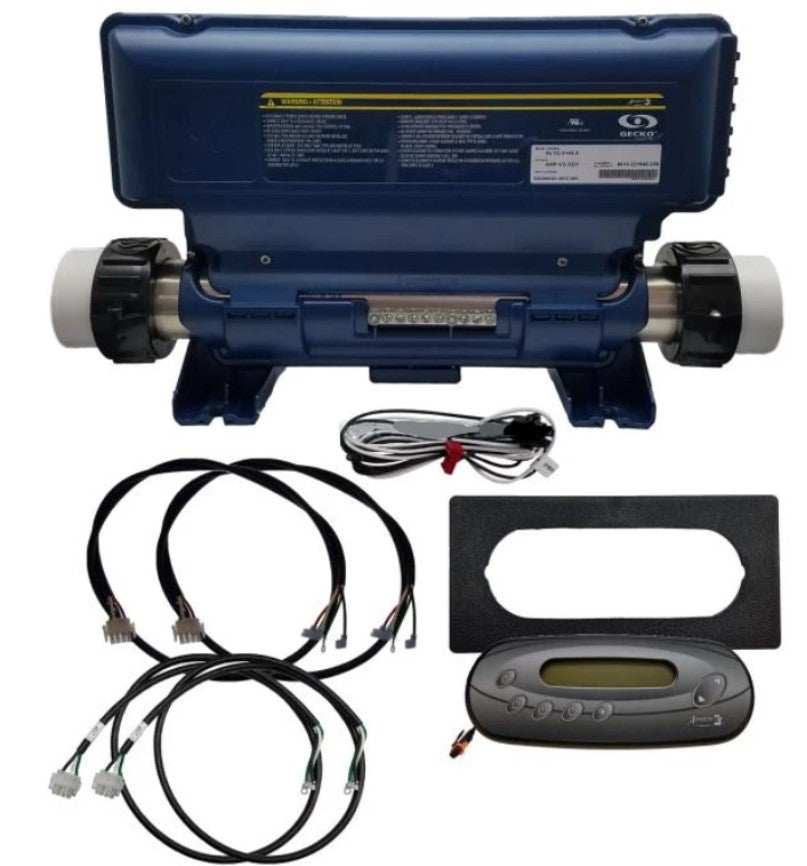

Included Parts and Specifications.

• YE5 control pack with heater
• Keypad IN.K450
• Adapter plate for keypad
• Light and light cord
• Dual-speed amp cord
• Single speed amp cord
• Circ pump - 120 or 240 Volts
• Light - 12V
• Ozone - 120 or 240 Volts
• 120/240V convertible
• 1.0/4.0 kw heater
• Pump 1 - 1 speed or 2 speed
• Pump 2- 1 speed or 2 speed
• Pump 3/blower - 1 speed only

***This system like all systems, will require correct component voltage set-up and spa configuration. Please see the "Technical and Installation" for installation instructions.

If using both ozone and circulation pump, you will need 9920-401369 harness:

Technical and Installation:

1. Voltage Conversion with component wires is required (pack ships with components in the "N" 120V location, you will simply need to move these to L2 240V for 240 volt components.
2. You will also need to select a configuration based on your spa components and how they operate. This is a simple process done with the control panel (see instructions)
3. Please also follow wiring schematics on the back side of the spa pack cover.

Important: YE5 Instructions
