54122 Balboa® M2 - M3 Deluxe and Standard Board (52518)

54122 Balboa® 54122 M2 / M3 Deluxe and Standard Board | replaced w/52518

IMPORTANT: This circuit board has been replaced with Balboa® 52518 Circuit Board.

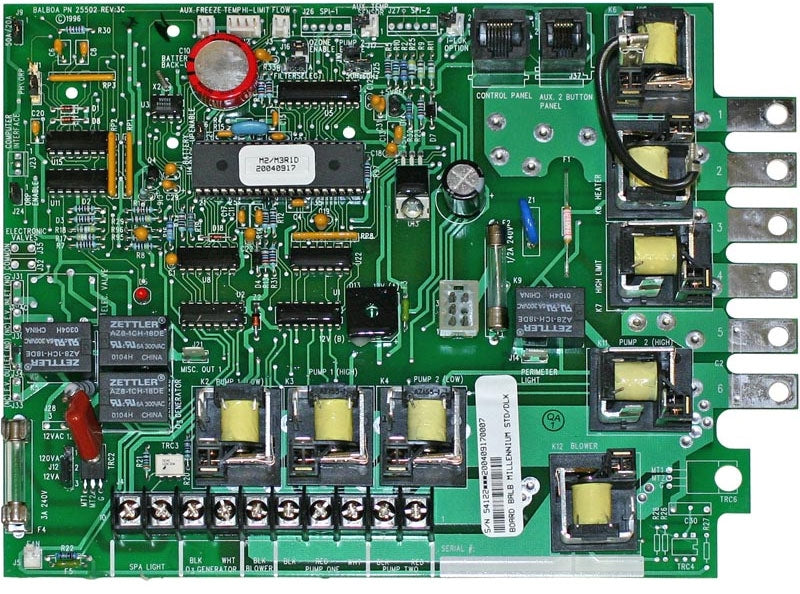

 Balboa® M2/M3 Deluxe/Serial Standard Circuit Boardpool

Circuit boards are not "plug and play - they will require correct component voltage set-up and dipswitch configuration. Please follow the wiring schematics on the back side of the spa pack cover.

Do not buy a circuit board based on appearance, as many boards look the same and manufacturers can change board appearance. Refer to this tech tip before buying a replacement board What to Look for When Buying a Circuit Board – Spa Parts Experts

Features:

• Chip Number Balboa M2/M3R1*
• Chip Number Majestic Spa AC100R1*
• System type (deluxe or standard)

Product specifications:

• 8 Pin Phone style plug connector
• 30 day battery backup and optional ORP protection

This Balboa circuit board is also listed under following: 23163, 610992,                           9710-19,  M2/M3R1D, SEV200F.O.

The following control panels are compatible with the above circuit board: 54128, 54108, 53189-01, 51247-01 discontinued use 51247, 51057-01 and 51216.

This circuit board type used in Majestic Spas (chip AC100R1(x) where x is any version, Cal Spas CS4000R1(x), Diamond Spas DS100R1(x), Hot Tub Outpost spas HTO100R1(x), Balboa M2/M3R1(x), Balboa M2GAS,

Replaces:  2000DR1C , 2000DR2B , 33-54122-K , 50862 , 50975 ,54122, 510ER1A , 51408 , 51414 , 51511 , 51545 , View More 51789 , 52014 , 52025 , 520ER1C , 52518 , 610992 , 611313 , 961XR1A , 9710-19 , AC100R1(x) , AC100R1A , APS100R2(x) , APS100R2A , B240DGR2A , B240DGR2B , B240DGR2D , BAL52518 , BAL54122 , C3000R1C , C3000R1D , C4000R1A , CS3000R , DAK100R1A , DAK100R1B , DS100R1C , DS34R2A , DS34R2B , DS4R3C , FW150R1B , H150R2A , H150R2C , HPL200R1F , HS100R1A , JET100R1A , L101R1B , LAS101R1A , LAS101R2B , LB104R1B , LB104R1C , LB104R1D , LB104R1E , M2/M3R1 , M2/M3R1(x) , M2/M3R1D , MAJ200R1B , MAJ200R1D , MAS300R1F , Q1043R2A , SAR200R2A , SCS100R1A , SEV200F.O. , SEV200FO , SS3000R1A , WS200R1A , ZX2000R2A , ZX2000R2B

Documents:

54122 Wiring schematic     54122 M3 Jumper J7 A side programming  54122 M3 Jumper J7 B side programming

SKU: 54122
MPN: 54122
Model: M2-M3 Deluxe
UPC: 710033383147
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
