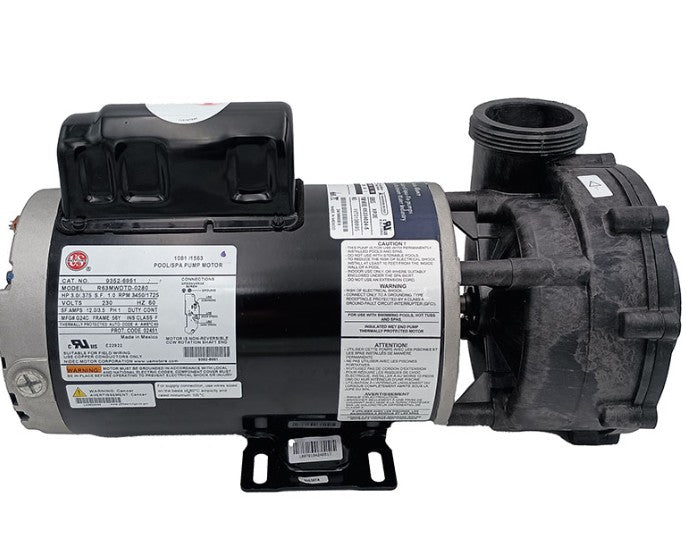

05334024-5040 Pump, AF, XP2E, 56FR, 230V, 2SP, 3.0HP, 12.0A, 2.5" x 2.0" SD

Pump, AF, XP2E, 56FR, 230V, 2SP, 3.0HP, 12.0A, 2.5" x 2.0" SD

Specifications:

• Aqua-Flo
• Side Discharge
• Discharge Size: 2 inches
• Frame 56
• Horsepower 3 HP or 4HP
• Plumbing Size: 2-1/2In Suc & 2In Dis
• Pump Model XP2e
• Speeds: 2 Speed
• Suction Size: 2-1/2 inches
• Voltage 230V
• Can be labeled as a 3.0 or 4.0 HP rating.

Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see How to Wire a Spa Pump to wire the pump amp cord.

Shop this and more spa parts at the best prices online at Spa Parts Experts.

Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Remember we have hands on service experience with every product we sell, so we are available with tech support, problem diagnoses, installation help, and should it be needed warranty issues.
