1015017 Balboa ® Vico Ultima 2-Speed Pump, 2.0HP, 48Fr, 230V
Couldn't load pickup availability

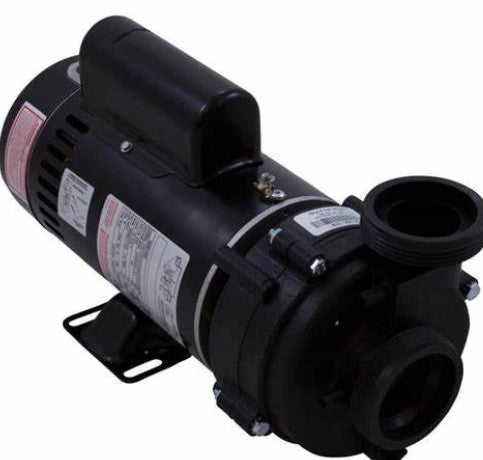

1015017 Balboa ® Vico Ultima 2-Speed Pump, 2.0HP, 48Fr, 230V, 8.5A
Balboa ® Vico Ultima 2.0HP Spa Pump with 2-speed, 220V and 48-Frame. Reference: OEM part numbers 1015017, 1015030 or 1055013. Works for above ground hot tubs.
Features:
- Side Discharge
- 2.0" Intake and Discharge.
- Replaces most Vico Ultima or Victoria spa pumps with similar amp draw
- UL and CSA certified
- All seals are carbon ceramic with Viton ® elastomer
Product specifications:
- Horsepower: 2.0 HP
- Speed: 2-Speed
- Frame: 48 FR
- Voltage: 220V
- Amperage: 8.5A
- Intake: 2.0"
- Discharge: 2.0" (side)
- Dimensions (Approx*): 14.75" L x 7.58" H x 6" diam.
Technical and Installation:
- Pump is manufactured in the wet-end orientation shown, but you can simply rotate your wet end to match your spa plumbing, if needed.
- Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
- Please see How to Wire a Spa Pump to wire the pump amp cord.
-
Can use any the following gaskets/orings (choose one x 2):
- 2" Pump Union O-Ring 805-0230 (6000-645)
- 711-4010 Waterway Heater Flat Gasket
- 21619 Balboa ® | Heater Coupling Gasket 2"
Replacement option for: PUULSC40258220H (1-Speed; If wiring for 220V), 1014237 (1-Speed; If wiring for 220V), PUULSC40258220GR (1-Speed; If wiring for 220V), PUULS40258220G (1-Speed; If wiring for 220V), 1014250 (1-Speed; If wiring for 220V), PUULS220258220H, PUULSC220258220GR, PUULSC220258220, 1014224, 1014225, 1014246, PUULC2102582F (1.0HP 220V), PUUPC220258220, UPXX222008C, PUUL220258220H, PUULSC20258220 (1-Speed), 1054347 (1.5HP 220V), 1014185, 630-6078 (HP-130 1-Speed 7.5A), 1055009. *This item is no longer available*
SKU: 1015017
MPN: 1015017
Model: Vico Ultima ®
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
