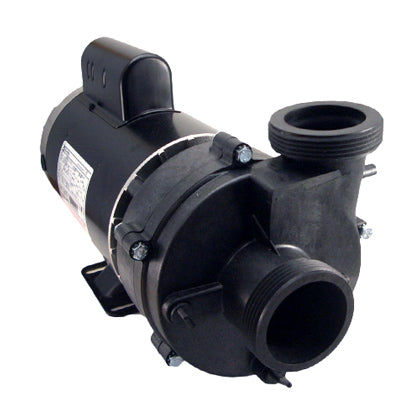

1016170 Balboa ® Vico Ultimax 2-Speed Pump 3 HP, 56FR, 230V

1016170 Balboa ®Vico Ultimax 2-Speed Pump 3HP, 56FR, 230V

Balboa ®  Vico Ultimax 4HP Pump

1016170 Vico Ultimax by Balboa ® is a 2-Speed Pump 3 to 4 HP Spa Pump 230V, 56 Frame, with 2" x 2" Side Discharge.

Features:

• Compact 56 frame design
• Dual Speed Pump (can be wired for one speed)
• Energy efficient and whisper quiet
• Multi-direction volute mounting options deliver a range of plumbing configurations
• All seals are carbon ceramic with Viton elastomers for long-lasting performance. Easily enduring prolonged heat and chemical exposure

Product Specifications:

• Speeds: 2
• Frame: 56Y

• Intake: 2"
• Motor Voltage: 230V
• Discharge Style: Side
• Amperage: 10A / 3.5A (cord not included) (label may also say 12a high)

• Horsepower: 3.0HP (Often Label as 4.0 SPL HP)
• Discharge: 2" Side Discharge (Outer Thread Diameter Is 3")


Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply  rotate you wet end  to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see  How to Wire a Spa Pump  to wire the pump amp cord.
• Can use the following gaskets/orings:
  • 2" Pump Union O-Ring 805-0230 (6000-645)
  • 711-4010 Waterway Heater Flat Gasket
  • 21619 Balboa ® | Heater Coupling Gasket 2"



Also known as:  PUUM2302582F,  PUM22000927, 1016218,  PUUMC2302582F, PUUMSC2502582FR, 1016200,  PUUMC2302582FJ, PUUMSC2602582FDS, 1016236,  1016170, PUUMC2302582FR, 1016280,  1016172, 1016024-NHP, 1016019 (1 Speed),  1016173, 5235212-S, 1016025,  1016167, 1016278 (1 Speed), X320558,  PUUMS2602582F, 1016205 (Niagara),   5235212-B,  1016174, 1016178 (1 Speed), 1016170 (1 Speed),  PUUMSC2602582F, X320527,  1016014, X320528,  PL388, X320375 (1 Speed),  PL389, 1016205-NHP,  1016166, 1016195,  1016184, 1016026-NHP,  1056016 (Balboa), 1016020-NHP,  1015112 (1 Speed), 1016235,  PL342, 1016230,1016194, 1016215

SKU: 1016170
MPN:  5235212-S - 5235210
Model: Ultimax
UPC: N/A
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
