Balboa Water Group

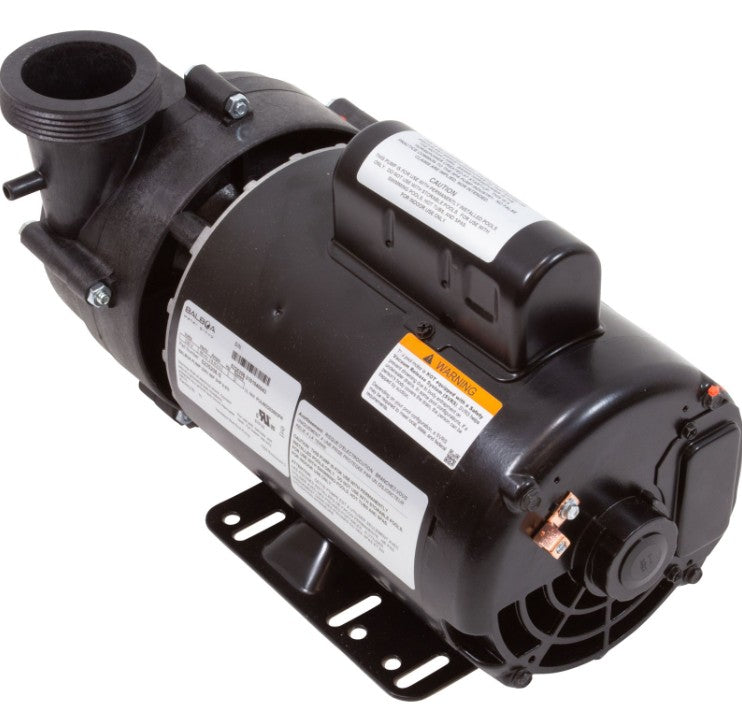

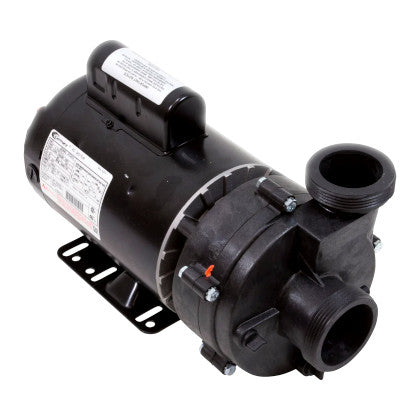

1016204 Balboa® Vico Ultimax 2-Speed Pump, 2HP, 56FR, 230V

Regular price $324.00
Regular price Sale price $324.00
Tax included. Shipping calculated at checkout.

1016204 Balboa® Vico Ultimax 2-Speed Pump, 2/2.5HP, 56FR, 230V, 8.8/2.9A

Balboa Vico®  spa pump 2.0/2.5 Horsepower, 230V, two speed pump

Pump will be labeled between 2-2.5 HP with matching amperage and other specifications.

The Balboa Water Group Vico Ultimax® Spa Pump are design with for small applications (zone seating and focused therapy) up to multi pump configurations (can run 100+ jetted systems).


  • Cool running 56 frame motor
  • High flow rates exceeding 325 gallons per minute for maximum performance in your luxury applications
  • Multi-directional volute mountings provide the flexibility to accommodate any configuration. See how to rotate a pump wet end.
  • All seals are carbon ceramic with Viton elastomers for long-lasting performance, easily enduring prolonged heat and chemical exposure
  • Ultra-efficient motor and the highest efficiency hydraulics versions that help meet appliance efficiency regulations
  • UL, TUV, CSA, and CE/VDE/GS certified

Product specifications:

  • Horsepower: 2.5HP
  • Speed: 2
  • Frame: 56fr
  • Voltage: 230V
  • Amperage:  8.8 / 3A
  • Intake: 2"
  • Discharge: 2" Side Discharge
  • Inlet/outlet measure: 3" outside diameter

Technical and Installation:

  • Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end to match your spa plumbing, if needed.
  • Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
  • Please see How to Wire a Spa Pump to wire the pump amp cord.

Also known as: PUBFSC2252582F, 1016039 ,1056191, PUUMS2502582F, 1016191, PUMMSC2402582FR, PUUMSC2252582F, PL346, PUUMS2502582F,1016041 - Single Speed, PL347, 1016016, 1016210, PL390, X320377, 1016058, 1016206, HP-130, 1016032, 1016228, PUULSC20258220, 1016168, 1016154, 1016010, 1016030, PUUMSC2402582FR, 1016223, 1016162 BigFoot, PAV6BF, 1016155, 1016163, 1016012 (Balboa), 10-16-030. 1016209, 1016179,1016062, 1016181, 1016182, 1016043 - 1Speed, 1016033,  1016031,  1016012 ,1056062, 5235208-B

SKU: 1016204
MPN: 5235208-B
Model: Vico Ultimax®
Manufacturer: Balboa Water Group®
Warranty: 1 yr. (with manufacturer)
