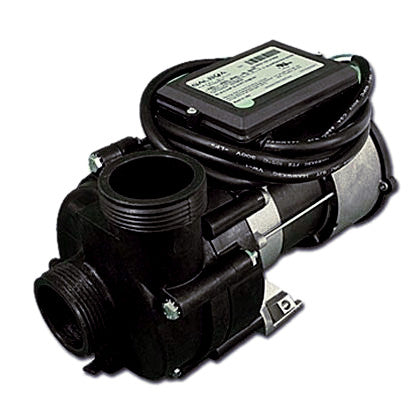

1030056 (PUM22100945) Balboa ® Vico Ultima Spa Circulation 1-Speed Pump, 48FR, 0.6A 230V, 1.5" (NLA)
Couldn't load pickup availability
1030056 Balboa ® Vico Ultima Spa Circulation 1-Speed Pump
**No longer available. Please contact us from replacement options
Can be replaced with PUM22100945 Cal Spas
Balboa ® Hi-Performance 1/4 HP (Single Speed) Circulation Spa Pump, 220V, 60Hz, 1725 RPM, 1.05A. OEM
Features: for
- Compact design
- Nearly silent operation
- Multi-directional volute mountings
- 24-hour circulation pump (with 10-frame motor)
- Vico Ultima Pump Wet End
- All seals are carbon ceramic with Viton ® elastomers
- Flexibility to accommodate any plumbing configuration
- Ozone injection can run concurrently so water is sanitized and clean for every use
Product Specifications:
- Type: Single Phase
- Voltage: 220V, 60Hz
- Amperage: 1.05 A
- RPM: 1725
- Frame: 48 FR
- Horsepower: 1/4 HP (Single Speed)
- WoW Motor, TEFC
- Output up to 65 GPM
- Carbon ceramic seals with Viton ® elastomers for long-lasting
- UL, TUV, vCSA certified
- 1.5" Center Suction
- 1.5" Side Discharge
- Amp Cord, 4-Prong, 3-Wire, 8ft
- Overall: 11.62" l x 7.5" h x 7.0" w
- Motor: 7.5" l x 6.75" h x 5.3" w
- Wet End: 7.5" h x 7.0" w x 5" d
Technical and Installation:
- Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end to match your spa plumbing, if needed.
- Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
- Please see How to Wire a Spa Pump to wire the pump amp cord.
Alternates: 1070022, 1-00-0218,1014032, 1030010, 1030056, 1000218, A1MB HV,
PUULC02513822OSI
Also known as: 21-0015-81,1030010
NOTE: This circ pump 1030056 is now DISCONTINUED. It can be replaced with part #1070056.
Documents:
SKU: 1030056
MPN: 1030056
Model: Vico Ultima ®
UPC: N/A
Manufacturer: Balboa Water Group ®
Warranty: 1 yr. (with manufacturer)
-----------------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts.
Disclaimer: The product image displayed is for illustrative purposes only.
The actual product may vary in color, size, shape, or other physical attributes.
We strive to provide accurate product descriptions and images, but please note that the representation of the product may differ slightly from the actual item received.
