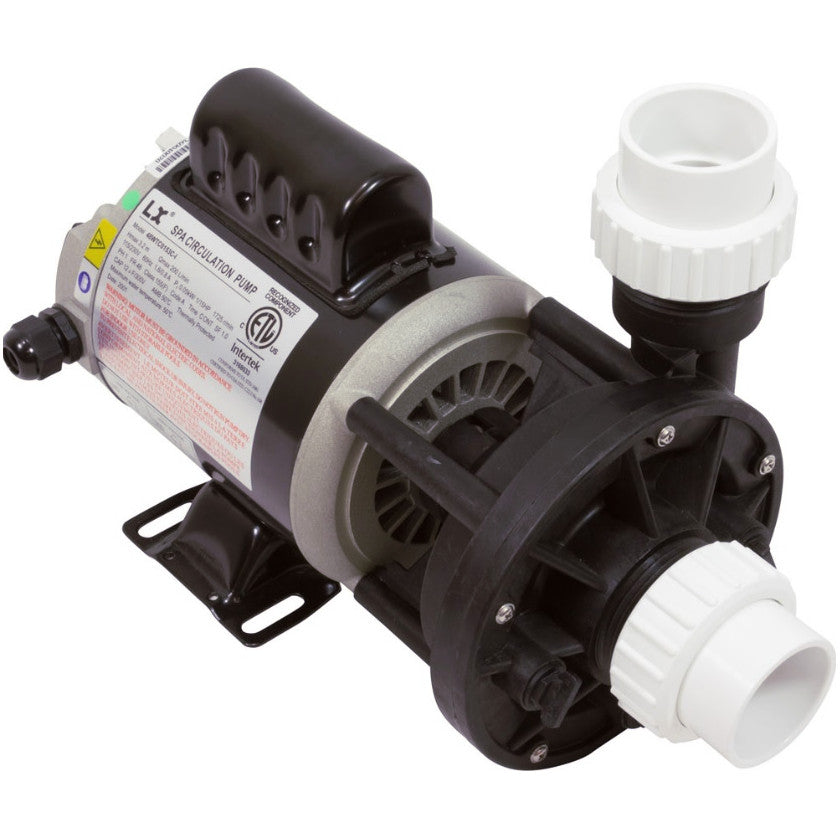

48WTC0153C-I LX Lingxiao Circulation Pump 1/15HP, 1-SP, 48FR, 115/230V
Couldn't load pickup availability
48WTC0153C-I LX Lingxiao Spa Pump, 1/15HP, 1-SP, 48FR, 115/230V, 1.6/0.8 Amps, 1.5", SD
48WTC0153C-I LX Circulation Pump, 1/15HP, 1-speed, 48 frame, 115/230V, 1.6/0.8 Amps with 1-1/2" inlet, 1-1/2" discharge (side discharge). Used on Sundance ® spas (made before 07/11/2011).
This LX pump is commonly used to replace Aqua Flo/Gecko CMHP 1/15HP, 115/230V, 1-speed, 48-frame, 1-1/2" inlet 1-1/2" discharge pumps. Also replaces replace Waterway ® circ pumps with same specifications.
Features:
- Compact size
- Ideal replacement to other comparable circ pumps
- Includes unions (O-rings sold separately)
Power requirements:
- Motor Voltage: 115/230V
- Frequency: 60Hz
- Amperage Draw:
- 1.6 Amps at 115 Volts
- 0.8 Amps at 230 Volts
Product specifications:
- Horsepower: 1/15HP
- Motor Speed: 1-Speed
- Frame Rate: 48Y (Thru-Bolt)
- Inlet Size: 1-1/2"
- Discharge Size: 1-1/2"
- Discharge Style: Side
- 1-1/2" union with a side discharge
- Dimensions: 12-7/8" L x 7" W x 8-1/4" H
Technical and Installation:
- Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end to match your spa plumbing, if needed.
- Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
- Please see How to Wire a Spa Pump to wire the pump amp cord.
SKU: 48WTC0153C-I
MPN: 48WTC0153C-I
Model / Series: WTC0153C-I
UPC: 600358155423
Manufacturer: Guangdong Lingxiao Pump Industry Co., Ltd. (LX)
Warranty directly with manufacturer.
-----------------------------------
Shop this and more spa parts at the best prices online at Spa Parts Experts!
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
