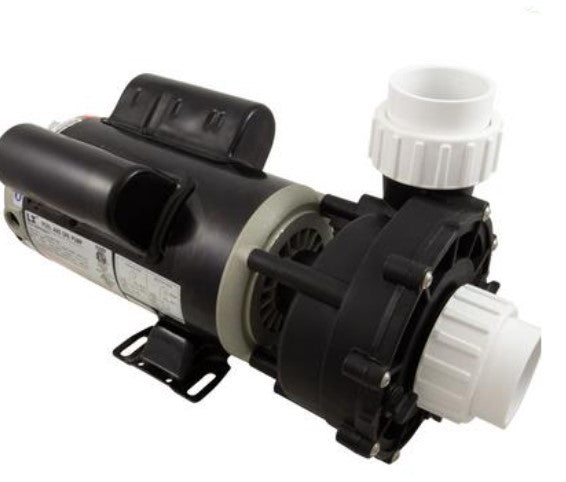

48WUA1653C-I - One speed Pump LX 48FR 115V/230V

48WUA1653C-I - One speed Pump LX 48FR 115V/230V

Manufacturer: Guangdong Lingxiao Pump Industry Co., Ltd. (LX)

Warranty: with manufacturer.

• Dual voltage
• Frame: 48
• Voltage: 115 / 230V
• Amperage: 17 (115V) / 8.5 (230V)
• Horsepower: 1.65
• Speeds: 1
• Intake: 2"
• Discharge: 2" Side Discharge

Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply  rotate you wet end  to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see  How to Wire a Spa Pump  to wire the pump amp cord.
• Can use the following gaskets/orings:
• 2" Pump Union O-Ring 805-0230 (6000-645)
• 711-4010 Waterway Heater Flat Gasket
• 21619 Balboa ® | Heater Coupling Gasket 2"
