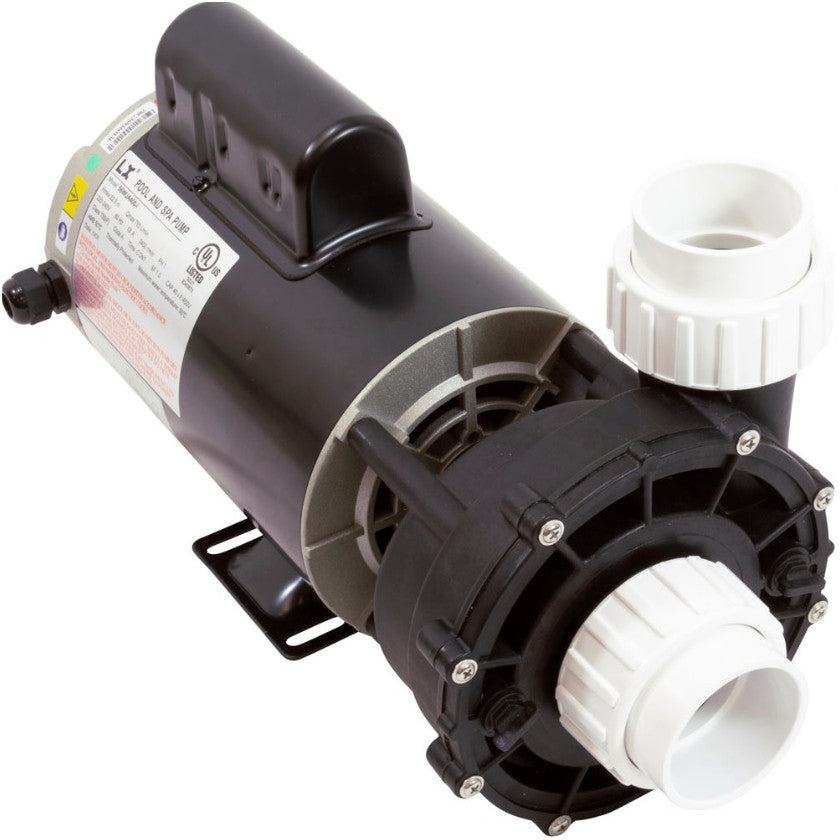

56WUA200-II LX Lingxiao Spa Pump, 2.0HP, 2-SP, 56FR, 230V, 8.0/3.0 A
Couldn't load pickup availability
56WUA200-II LX Lingxiao Spa Pump, 2.0 HP, 2-SP, 56FR, 230V, 8.0/3.0 Amps
56WUA200-II LX Spa Pump is a great replacement for Waterway ® Executive (2.0 Horsepower, 56 frame) Pump. This is a 2-speed pump, 8.0/3.0 Amps, with 2" inlet, 2" discharge (side discharge).
This pump is commonly used to replace Aqua Flo XP2e, 2.0 HP, 56FR pump, 2-speed, 2" inlet, 2" discharge pumps. Also known as WUA200-II.
The 56WUA200-II LX Pump can also be used as a 1-speed pump (like the WUA200-I) only by connecting the high-speed terminal and leaving low speed unconnected (i.e., using a 3-wire 1-speed pump cord instead of a 4-wire 2-speed pump cord).
Features:
- Quiet operation
- Includes unions (O-rings sold separately)
Power requirements:
- Motor Voltage: 230V
- Frequency: 60Hz
- Amperage: 8.0/3.0A (hi and low speed amps)
Product specifications:
- Horsepower: 2.0HP
- Motor Speed: 2-Speed
- Frame Rate: 56Y (Thru-Bolt)
- Inlet / Outlet: 3" OD
- Front Face Plate: 7-1/2" OD
- Suction Style: Center
- Suction Connection Type: Male Buttress Thread (mbt)
- Suction Pipe Size: 2"
- Discharge Style: Side
- Discharge Connection Type: Male Buttress Thread (mbt)
- Discharge Pipe Size: 2"
- Drain Plug Location: 3, 6, 9 o`clock
Technical and Installation:
- Pump is manufactured in the wet-end orientation shown, but you can simply rotate your wet end to match your spa plumbing, if needed.
- Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
- Please see How to Wire a Spa Pump to wire the pump amp cord.
-
Can use any the following gaskets/orings (choose one x 2):
- 2" Pump Union O-Ring 805-0230 (6000-645)
- 711-4010 Waterway Heater Flat Gasket
- 21619 Balboa ® | Heater Coupling Gasket 2"
Replaces: LXWUA200-II, LXWUA200II, WUA200-I
SKU: 56WUA200-II
MPN: 56WUA200-II
Model / Series: WUA200-II
UPC: N/A
Manufacturer: Guangdong Lingxiao Pump Industry Co., Ltd. (LX)
Warranty directly with manufacturer.
-----------------------------------
