LX Lingxiao

56WUA300-II LX Lingxiao Spa Pump, 3.0HP, 2-SP, 56FR, 230V, 10/3.5 A

Regular price $279.50 USD
Regular price Sale price $279.50 USD
Tax included. Shipping calculated at checkout.

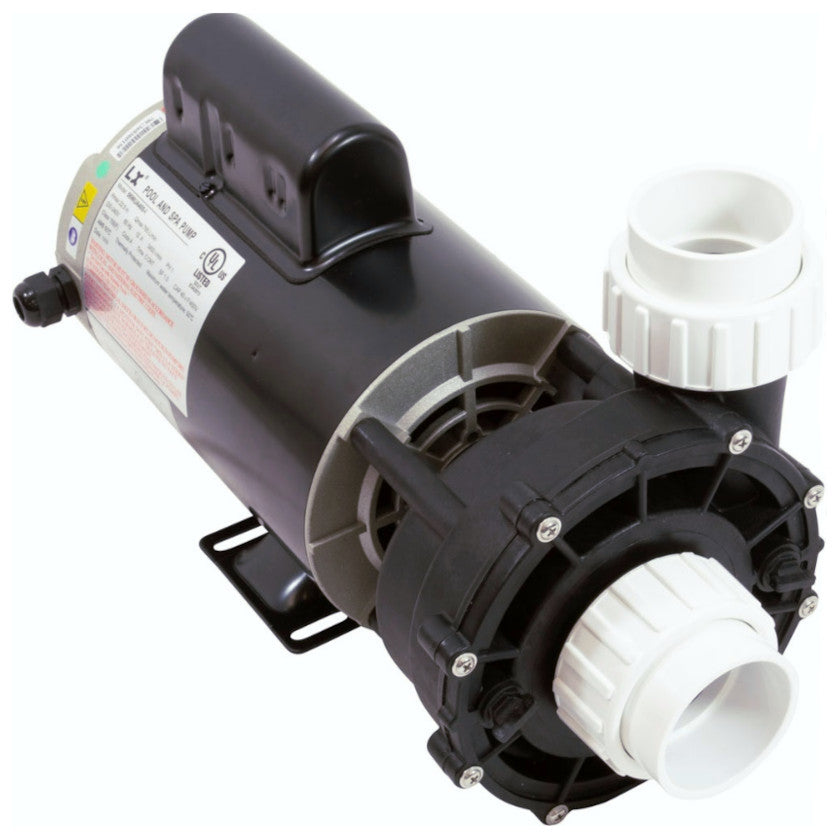

56WUA300-II LX Lingxiao Spa Pump, 3.0 HP, 2-SP, 56FR, 230V, 10/3.5 A

56WUA300-II LX Spa Pump is a great replacement for Waterway® Executive (3.0 Horsepower, 56 frame) Pump. This is a 2-speed pump, 10.0/3.5 Amps, with 2" inlet, 2" discharge (side discharge).

This pump is commonly used to replace Aqua Flo XP2e, 3.0 HP, 56FR pump, 2-speed, 2" inlet, 2" discharge pumps. Also known as HydroMaster BX4116-S2.

The 56WUA300-II LX Pump can also be used as a 1-speed pump (like the WUA300-I) only by connecting the high-speed terminal and leaving low speed unconnected (i.e., using a 3-wire 1-speed pump cord instead of a 4-wire 2-speed pump cord).

Features:

  • Quiet operation
  • Thermally Protected
  • Includes unions (O-rings sold separately)

Power requirements:

  • Motor Voltage: 230V
  • Frequency: 60Hz
  • Amperage: 10.0/3.5 Amps

Product specifications:

  • Horsepower: 3.0HP
  • Motor Speed: 2-Speed
  • RPM: 3450/1725
  • Frame Rate: 56Y (Thru Bolt)
  • Inlet / Outlet: 3" OD
  • Front Face Plate: 7-1/2" OD
  • Suction Style: Center
  • Suction Connection Type: Male Buttress Thread (mbt)
  • Suction Pipe Size: 2"
  • Discharge Style: Side
  • Discharge Connection Type: Male Buttress Thread (mbt)
  • Discharge Pipe Size: 2"
  • Drain Plug Location: 3, 6, 9 o`clock

Technical and Installation:

  • Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end to match your spa plumbing, if needed.
  • Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
  • Please see How to Wire a Spa Pump to wire the pump amp cord.

    SKU: 56WUA300-II
    MPN: 56WUA300-II
    Model / Series: HydroMaster BX4116-S2
    UPC: N/A
    Manufacturer: Guangdong Lingxiao Pump Industry Co., Ltd. (LX)
    Warranty directly with manufacturer.
    -----------------------------------
