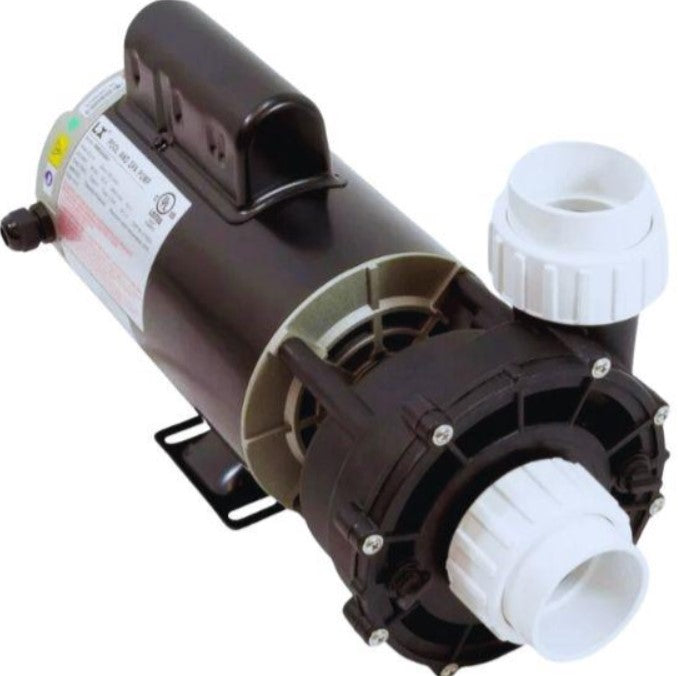

56WUA400-I LX Spa Pump, 4.0HP, 1-SP, 56FR, 230V, 12.0

56WUA400-I LX Spa Pump, 4.0HP, 1-SP, 56FR, 230V, 12.0

56WUA400-I LX Pump is a great replacement for Waterway ® Executive (4.0 Horsepower, 56 frame) Pump and others. This is a 1-speed pump, 12.0 Amps, with 2" inlet, 2" discharge (side discharge).

It also replaces Jacuzzi/Sundance ® Theramax 6500-902

Features:

• Quiet operation
• Includes unions (O-rings sold separately)

Product specifications:

• Voltage: 230V
• Frequency:  60Hz
• Amperage: 12.0
• Frame Rate: 56Y
• Horsepower: 4
• Motor Speed: 1-Speed
• Inlet  / Outlet: 3" OD
• Discharge Type: Side
• Front Face Plate: 7-1/2" (Outside Dimension)

Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply  rotate you wet end  to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see  How to Wire a Spa Pump  to wire the pump amp cord.
• Can use the following gaskets/orings:
• 2" Pump Union O-Ring 805-0230 (6000-645)
• 711-4010 Waterway Heater Flat Gasket
• 21619 Balboa ® | Heater Coupling Gasket 2"

Also known as HydroMaster BX4117-S2, 56WUA400-2/6

SKU: 56WUA400-I
MPN: 56WUA400-I
UPC:  600358155455
Manufacturer:  Guangdong Lingxiao Pump Industry Co., Ltd. (LX)
Warranty directly with manufacturer.
-----------------------------------
