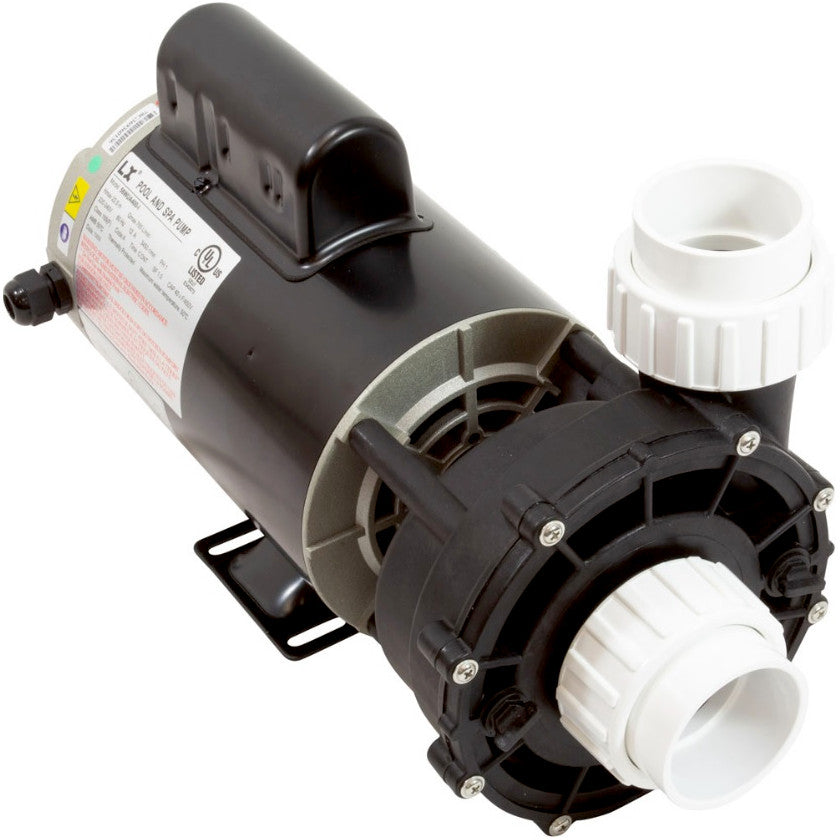

56WUA400-II LX Spa Pump, 4.0HP, 2-SP, 56FR, 230V, 12.0/4.4A

56WUA400-II LX (Lingxiao) Spa Pump, 4.0HP, 2-Speed, 56FR, 230V, 12.0/4.4A

56WUA400-II LX Pump is a great replacement for Waterway ® Executive (4.0 Horsepower, 56 frame) Pump and Energy Saver 430-0052. This is a 2-speed pump, 12.0/4.4 Amps, with 2" inlet, 2" discharge (side discharge).

It also replaces Jacuzzi/Sundance ® Theramax 6500-352, 6500-365 and 6500-363.

The 56WUA400-II LX Pump can also be used as a 1-speed pump (like the WUA400-I) only by connecting the high-speed terminal and leaving low speed unconnected (i.e., using a 3-wire 1-speed pump cord instead of a 4-wire 2-speed pump cord).

Features:

• Quiet operation
• Includes unions (O-rings sold separately)

Product specifications:

• Voltage: 230V
• Frequency:  60Hz
• Amperage:  12.0/4.0A
• Frame Rate: 56Y
• Horsepower: 4.4HP
• Motor Speed: 2-Speed
• Inlet  / Outlet: 3" OD
• Discharge Type: Side
• Front Face Plate: 7-1/2" (Outside Dimension)

Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply  rotate you wet end  to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see  How to Wire a Spa Pump  to wire the pump amp cord.
• Can use the following gaskets/orings:
  • 2" Pump Union O-Ring 805-0230 (6000-645)
  • 711-4010 Waterway Heater Flat Gasket
  • 21619 Balboa ® | Heater Coupling Gasket 2"



Also known as HydroMaster BX4117-S2, 56WUA400-2/6

SKU:  56WUA400-II
MPN:  56WUA400-II
Model / Series:  HydroMaster
UPC:  600358155454
Manufacturer:  Guangdong Lingxiao Pump Industry Co., Ltd. (LX)
Warranty directly with manufacturer.
-----------------------------------
